Product Overview

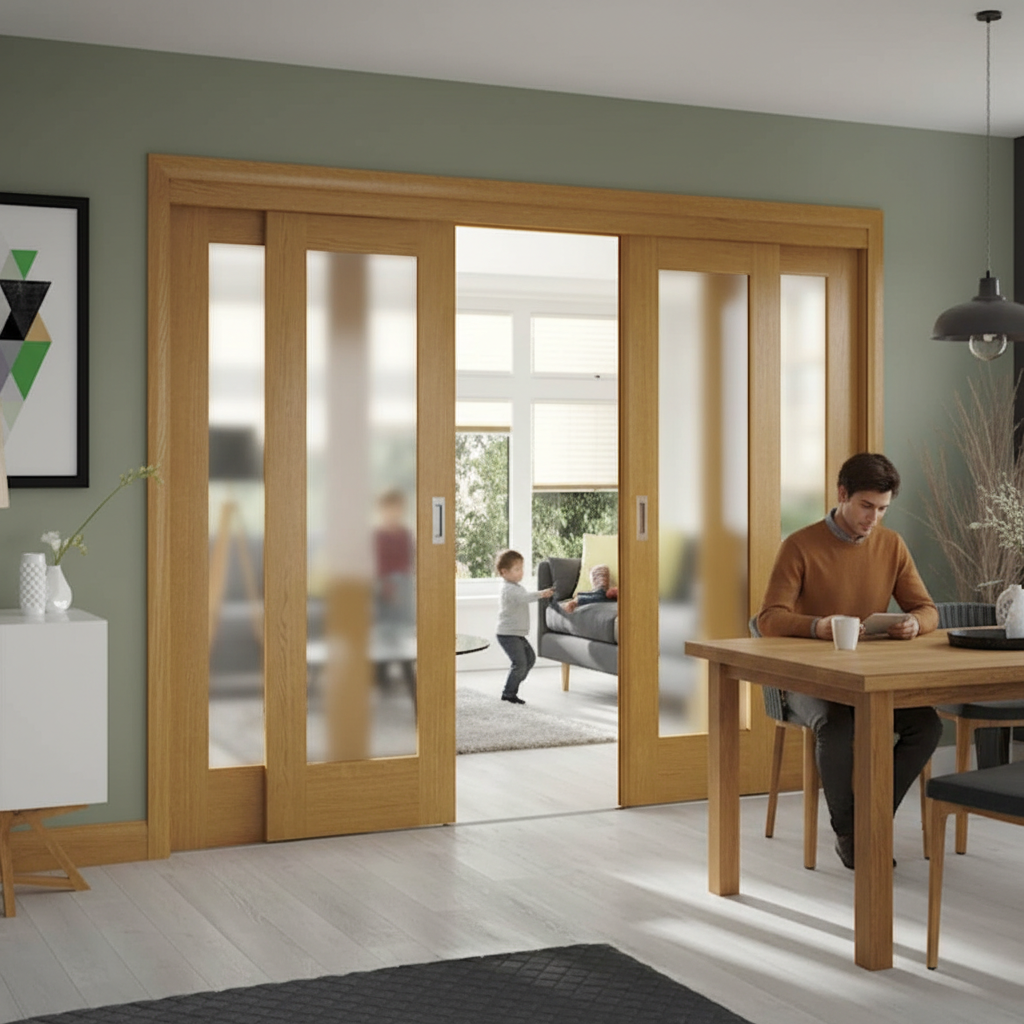

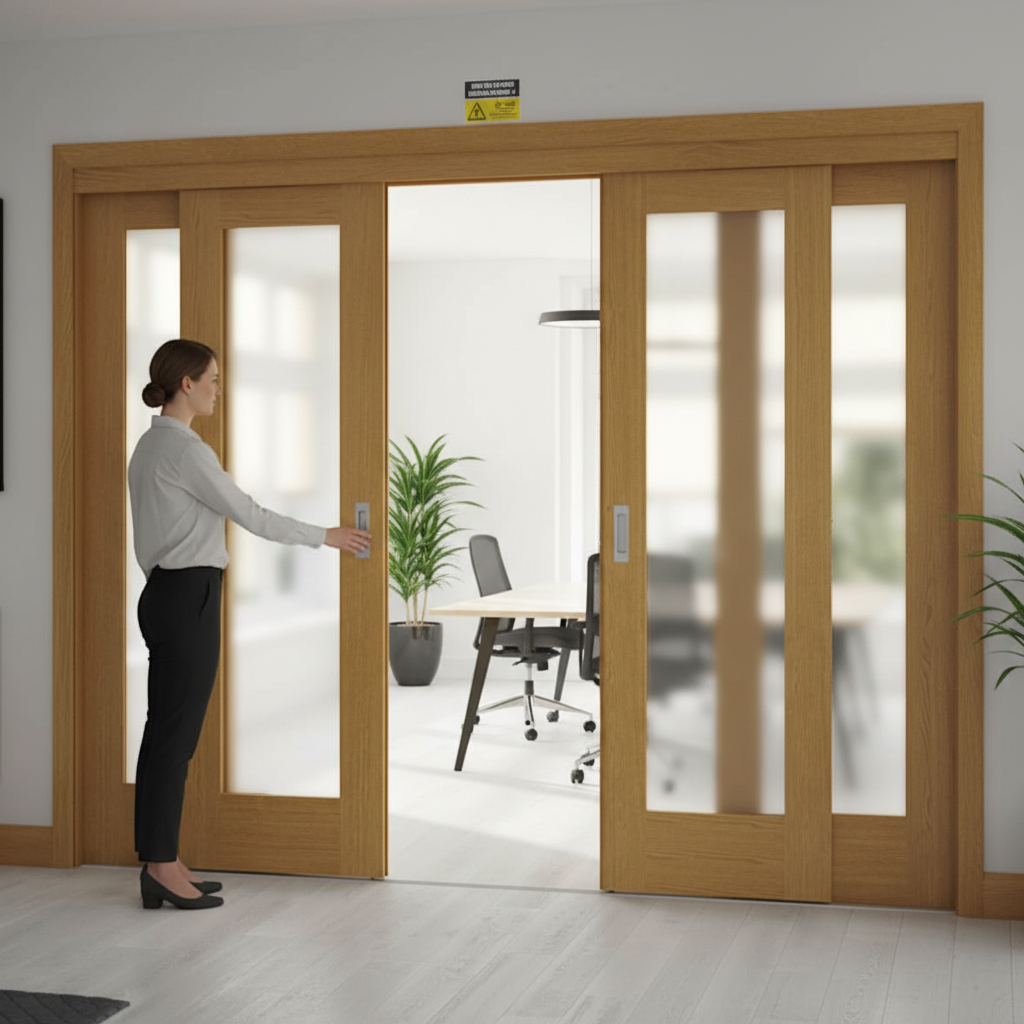

Premium Sliding French Doors with Fixed End Panels
The Premium Easi-frame system is the ideal choice for creating room divisions while maintaining an open-plan feel. Solid walls can be replaced with these folding or sliding doors, achieving an illusion of space and comfortable living.
These sliding French doors slide along a track, saving space as they do not require room to swing open like conventional French doors. The Easi-Frame can accommodate various door designs and is suitable for openings up to 3500mm wide.
Customize your style by mixing and matching between glazed and non-glazed doors. The choice is completely yours, allowing for unique interior design options.
The overall frame height is 2090mm, accounting for a 21mm floor covering. If the frame is installed on top of an existing floor covering, the frame height should be reduced to 2069mm.
Note that the Easi-frame is only compatible with standard 35mm thick doors; fire doors are not suitable for use with this system.
Features
- Complete sliding hardware provided (handle not included).
- Includes doors and fixed panels.
- Frame can be adjusted in height and width for different opening sizes.
- Frame can be installed flush with the floor level if the floor channel is set before any floor covering.
- Engineered construction for enhanced strength, stability, and performance.
- Product is supplied unfinished, ready for painting or staining.
Size Options
| Size | Overall Frame Size |
|---|---|
| 2 x 610mm Centre Door + 2 x 610mm Fixed Panels | 2090mm x 2520mm |
| 2 x 686mm Centre Door + 2 x 686mm Fixed Panels | 2090mm x 2824mm |
| 2 x 762mm Centre Door + 2 x 762mm Fixed Panels | 2090mm x 3128mm |
| 2 x 838mm Centre Door + 2 x 838mm Fixed Panels | 2090mm x 3432mm |
Technical Specifications
The Easi-Slide Frame is highly adaptable, suitable for various sizes and opening configurations. It is the responsibility of the installer to ensure appropriate dimensions and assembly for the intended use. Please ensure dry assembly before any openings are cut to guarantee the correct sizing.
Frequently Asked Questions
Q: Can the frame be adjusted for different door thicknesses?
A: The frame is designed to work with standard 35mm thick doors only.
Q: Is the product ready for immediate installation?
A: The product is supplied unfinished and will require painting or staining before installation.
Q: What is the maximum width for the opening?
A: The Easi-frame system can accommodate openings up to 3500mm wide.
