Premium Sliding French Doors with Clear Glazed Panels for Open Spaces, Suitable for Various Sizes and Styles
Premium Sliding French Doors with Clear Glazed Panels for Open Spaces, Suitable for Various Sizes and Styles
Product Overview

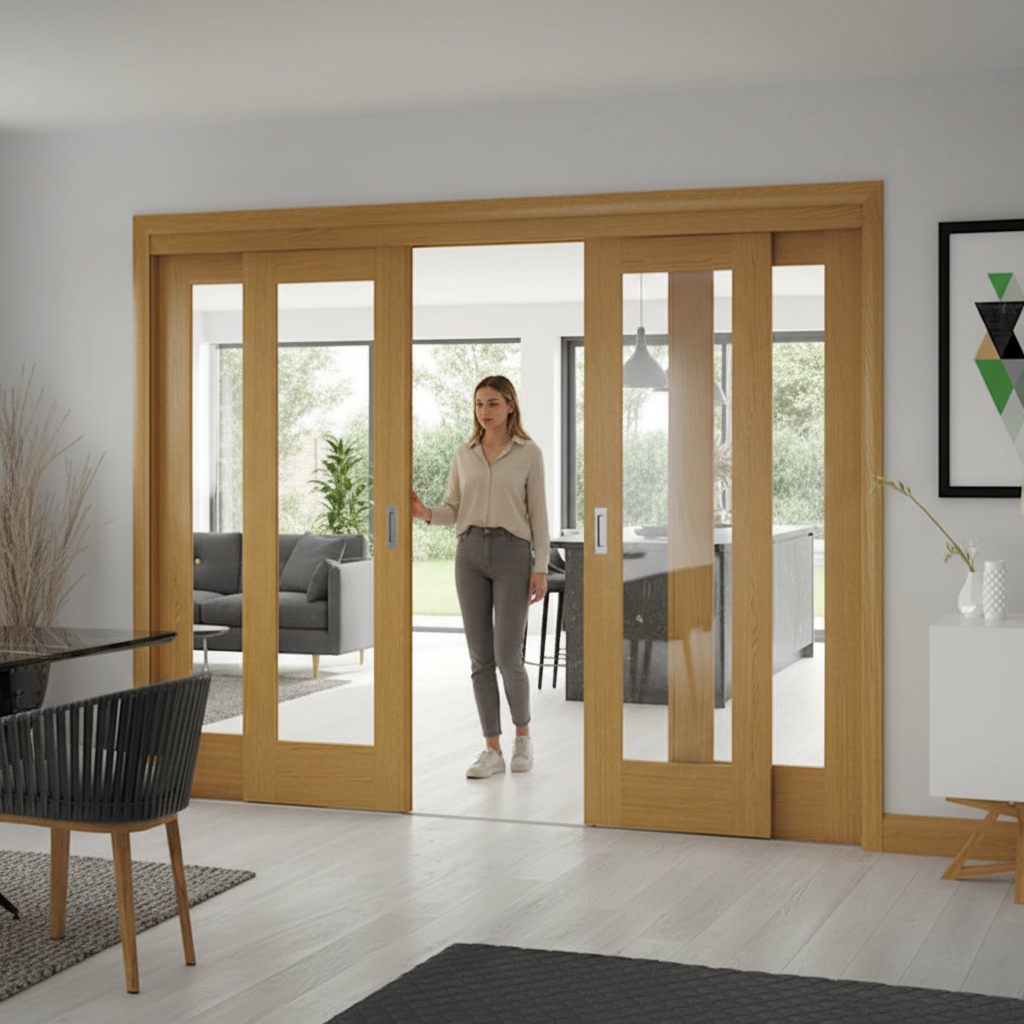

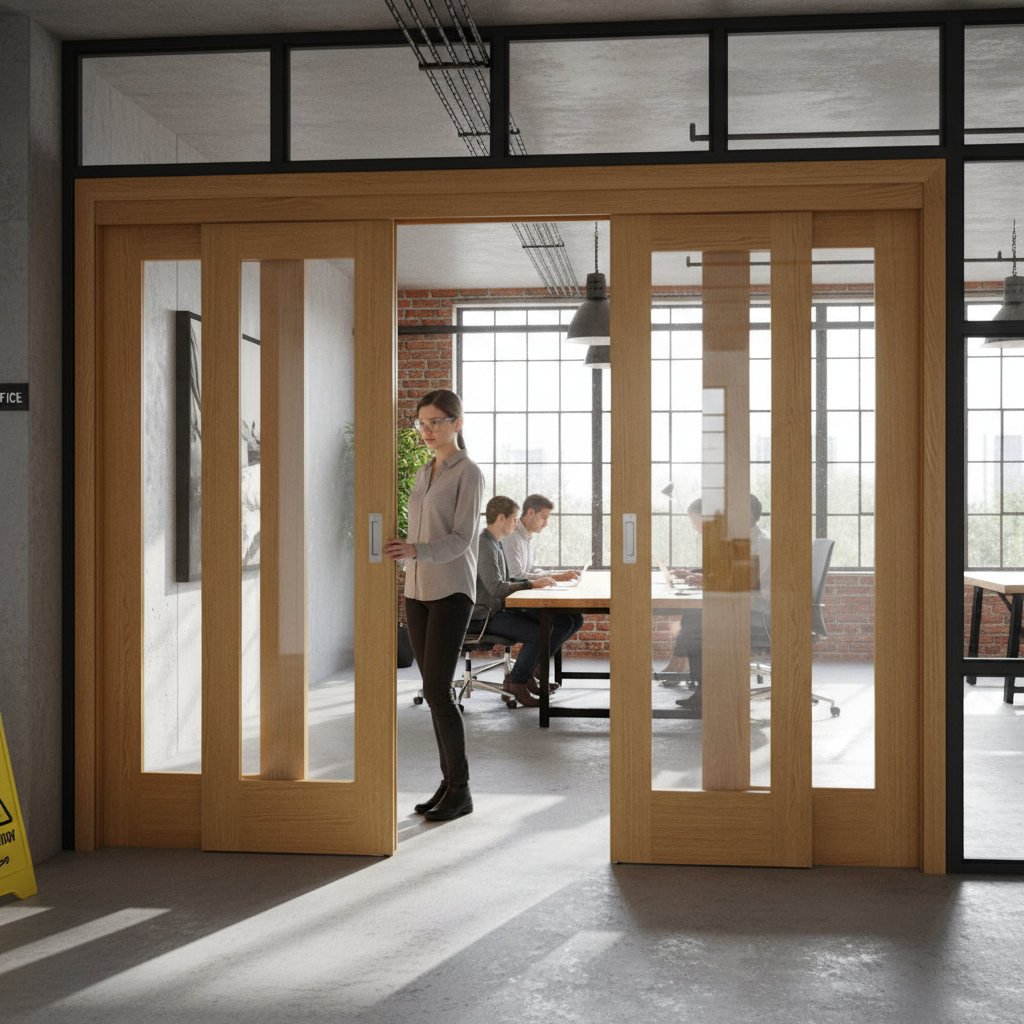

Premium Sliding French Doors with Fixed End Panels
The Premium Easi-frame system is the ideal choice for dividing rooms while maintaining an open-plan feel. Solid walls can be replaced with folding or sliding doors to create an illusion of space and comfort.
These sliding French doors are designed to slide along a track, saving space as they do not require room to swing open like conventional French doors. The Easi-Frame is compatible with almost any door design and is suitable for openings up to 3500mm wide.
Choose your style and create your own design by mixing and matching between glazed and non-glazed doors; the choice is entirely yours.
The overall frame height is 2090mm, accommodating a 21mm floor covering. If installing on top of an existing floor covering, the frame must be reduced to 2069mm in height.
The Easi-frame is designed to work with standard 35mm thick doors; fire doors are not compatible with the Easi-frame.
Features
- Supplied complete with all necessary sliding hardware (handle not included).
- Includes doors and fixed panels.
- The frame can be adjusted in height and width to fit various opening sizes.
- Can be installed flush with floor level, provided the floor channel is installed before any floor covering.
- Engineered construction for enhanced strength, stability, and performance.
- Product supplied unfinished, ready to paint or stain according to your preference.
Size Options
| Door Configuration | Overall Size Including Frame |
|---|---|
| 2 x 610mm Centre Door with 2 x 610mm Fixed Panels | 2090mm x 2520mm |
| 2 x 686mm Centre Door with 2 x 686mm Fixed Panels | 2090mm x 2824mm |
| 2 x 762mm Centre Door with 2 x 762mm Fixed Panels | 2090mm x 3128mm |
| 2 x 838mm Centre Door with 2 x 838mm Fixed Panels | 2090mm x 3432mm |
Technical Specifications
- Frame height: 2090mm (reduced to 2069mm if on existing floor covering)
- Compatible with standard 35mm thick doors
- Maximum opening width: 3500mm
Installation Notes
The Easi-Slide Frame is a versatile product intended for installation to fit multiple size ranges and opening configurations. It is the installer's responsibility to ensure that the required dimensions and assembly are suitable for the intended use of the product. It is recommended to dry assemble the system before cutting openings to ensure accurate sizing.
FAQs
-
Can I use fire doors with this system?
No, the Easi-frame is not compatible with fire doors. -
What is the maximum width for openings?
The system is suitable for openings up to 3500mm wide. -
Is the product pre-finished?
No, it is supplied unfinished and is ready for painting or staining.
