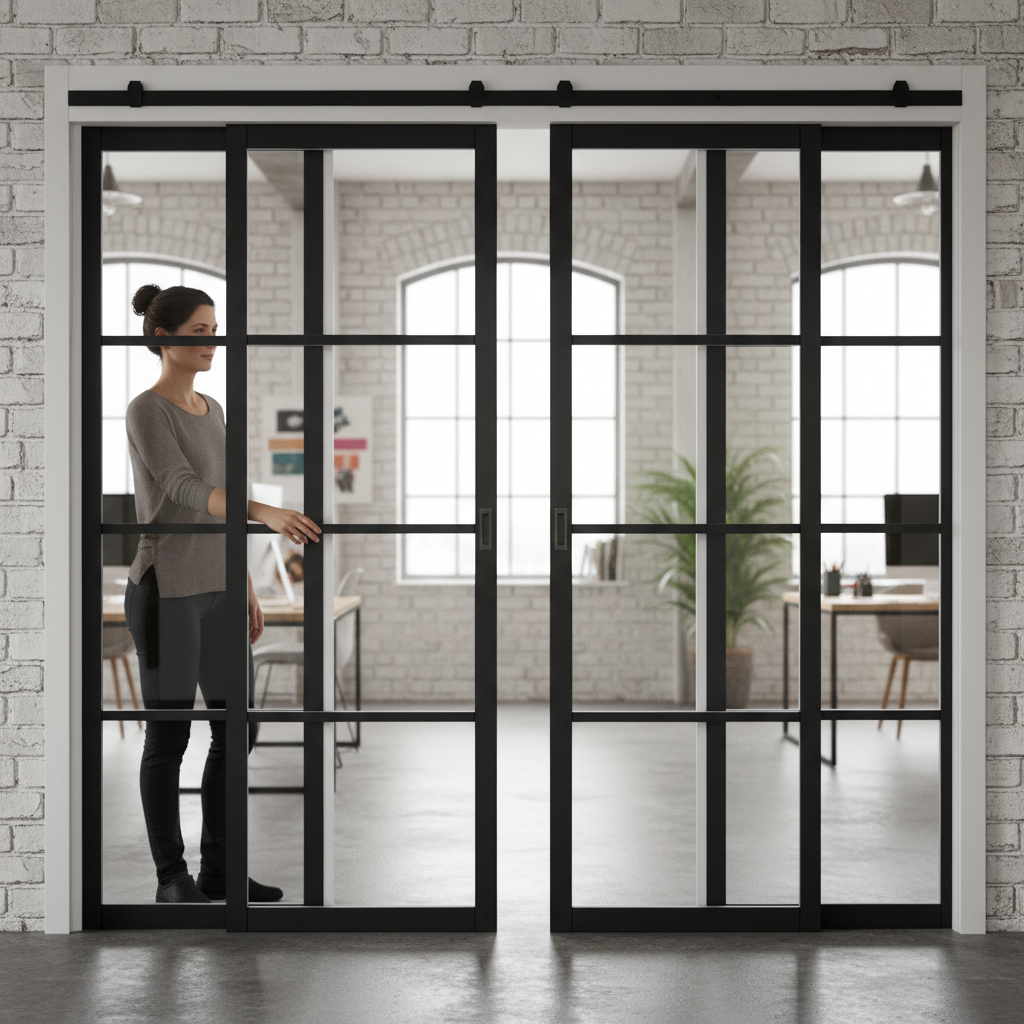

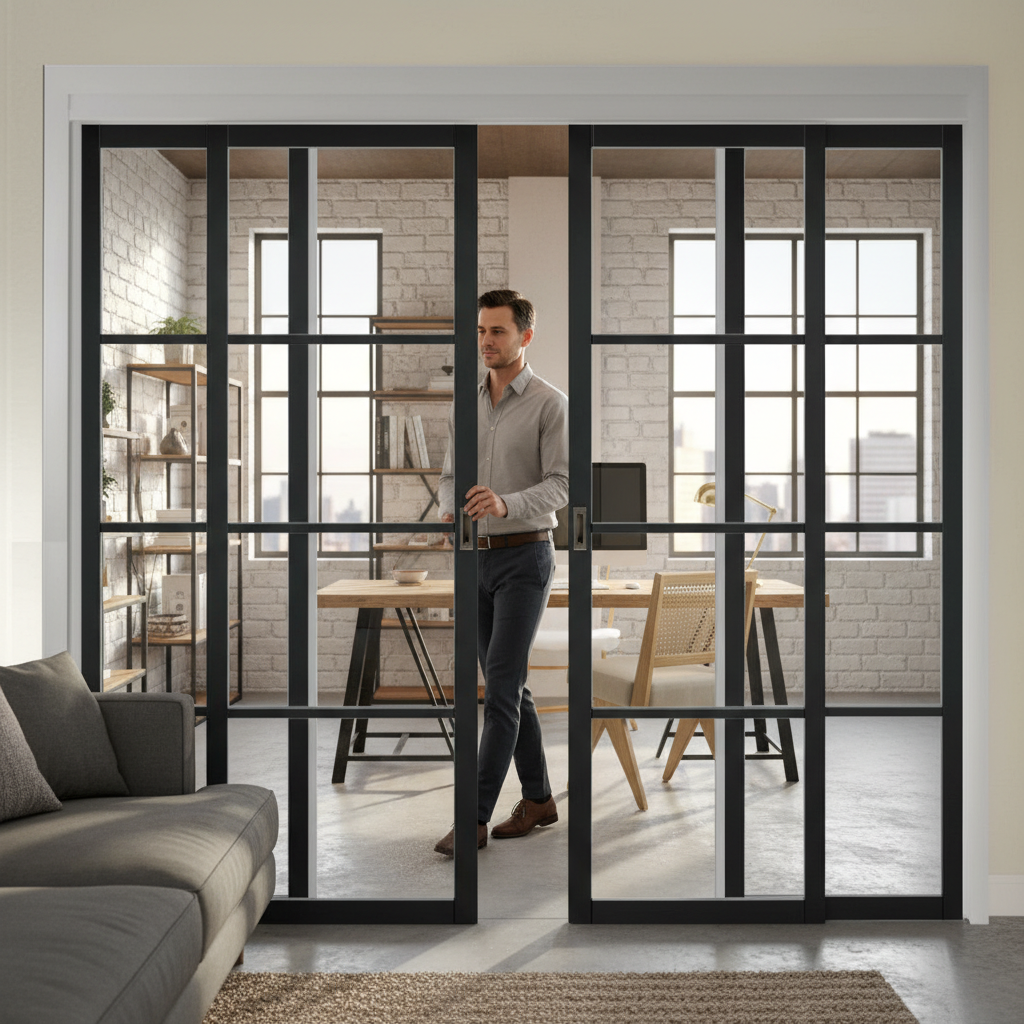

Premium Heavy Duty Sliding French Doors with Fixed Panels - 4L Design for Modern Spaces and Customizable Sizes
Premium Heavy Duty Sliding French Doors with Fixed Panels - 4L Design for Modern Spaces and Customizable Sizes
Transform Your Space
Transform your space into a modern, industrial oasis with our premium heavy duty sliding French doors. These sleek doors feature clear glazing and fixed side panels, adding natural light and creating a seamless transition between rooms. Elevate your style and maximize your space with these stunning doors.
These sliding French doors are designed to slide along a track, saving more space as they do not require room to swing open, unlike conventional French doors. The Easi-Frame can be utilized with almost any door design and is suitable for openings up to 3500mm wide.
You can select the style and create your own design by mixing and matching doors between glazed and non-glazed options; the choice is completely yours.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Overall Frame Height | 2090mm |
| Frame Height with Floor Covering | 2069mm |
Size Options
| Size Option | Overall Size Including Frame |
|---|---|
| 2 x 610mm Centre Door | 2090mm x 2520mm |
| 2 x 686mm Centre Door | 2090mm x 2824mm |
| 2 x 762mm Centre Door | 2090mm x 3128mm |
| 2 x 838mm Centre Door | 2090mm x 3432mm |
Features & Benefits
- Supplied complete with all sliding hardware excluding the handle.
- Doors and fixed panels included for easy installation.
- Frame can be adjusted in height and width to suit different opening sizes.
- Frame can be installed flush with the floor level, provided the floor channel is installed prior to any floor covering.
- Engineered construction for added strength, stability, and performance.
- Frame supplied primed white, ready to paint.
Technical Specifications
The Easi-Slide Frame is a multi-purpose solution suitable for various sizes and opening configurations. It is essential for the installer to ensure that the required dimensions and assembly are suitable for the product's intended use. Please ensure that the system is dry assembled before any openings are cut in order to guarantee correct sizing.
FAQs
- Can the frame be adjusted to fit different sizes? Yes, the frame can be reduced in height and width as needed.
- What is the maximum opening width? The Easi-Frame is suitable for openings up to 3500mm wide.
- Are fire doors compatible with the Easi-Frame? No, fire doors cannot be used with the Easi-Frame.
