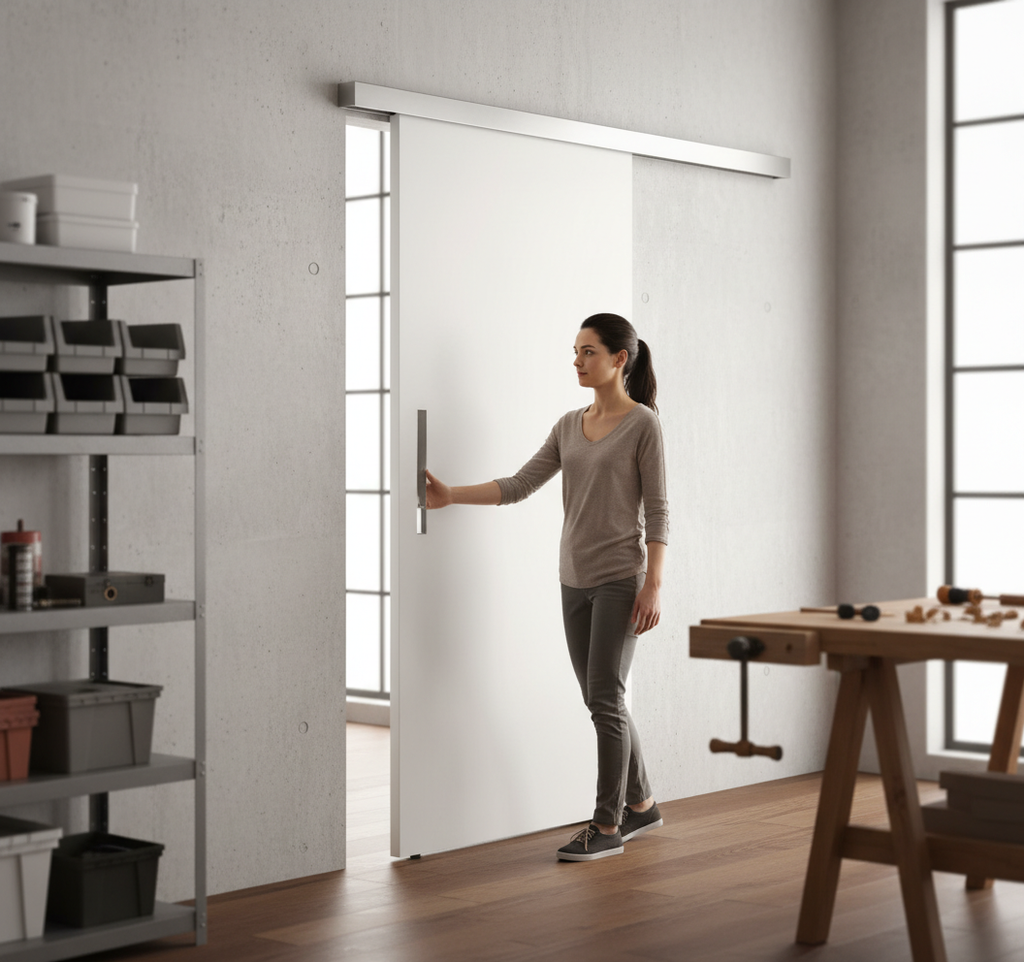

Premium Manual Sliding Door System for Wooden Doors with Soft Close and Adjustable Features
£438.00
Skip to product information
Premium Manual Sliding Door System for Wooden Doors with Soft Close and Adjustable Features
£438.00
Product Overview
This premium manual sliding door system is designed for wooden doors, featuring running rails that slide invisibly within the profile. The soft-closing operation gently guides the door into place, providing a smooth and quiet experience.
Features
- Manual operation with a sleek, unobtrusive design
- Soft-close mechanism for gentle door closure
- Wall-mounted installation for easy setup
- Height adjustable to fit various door sizes
- Maximum door weight capacity of 60 kg
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Max Door Weight | 60 kg |
| Min Door Width | 850 mm |
| Min Wooden Door Thickness | 34 mm |
| Max Wooden Door Thickness | 40 mm |
| Rail Dimensions (WxH) | 60 x 65 mm |
| Standard Length | 2000 mm |
| Optional Length | 2500 mm (special order) |
| Wall Distance (door-wall) | 12.3 mm |
| Optional Skirting/Architrave Spacer Kit | 12.5 mm |
Technical Specifications
- Suitable for wooden doors only
- Tested in accordance with DIN EN 1527:1998
- 100,000 cycles operational testing
- 1 leaf option available; 2 leaf option not available
FAQ
-
Can this system be installed by myself?
Yes, the system is designed for easy installation with wall-mounted setup. -
What is the maximum weight capacity?
The system can support doors weighing up to 60 kg. -
Is the soft-close feature adjustable?
Yes, the soft-close mechanism is designed for smooth operation.
