Premium Fire Rated Pocket Door System with White Glazed 4 Light Door, Galvanised Steel Frame, and Adjustable Runners for Seamless Operation
Premium Fire Rated Pocket Door System with White Glazed 4 Light Door, Galvanised Steel Frame, and Adjustable Runners for Seamless Operation
Product Overview

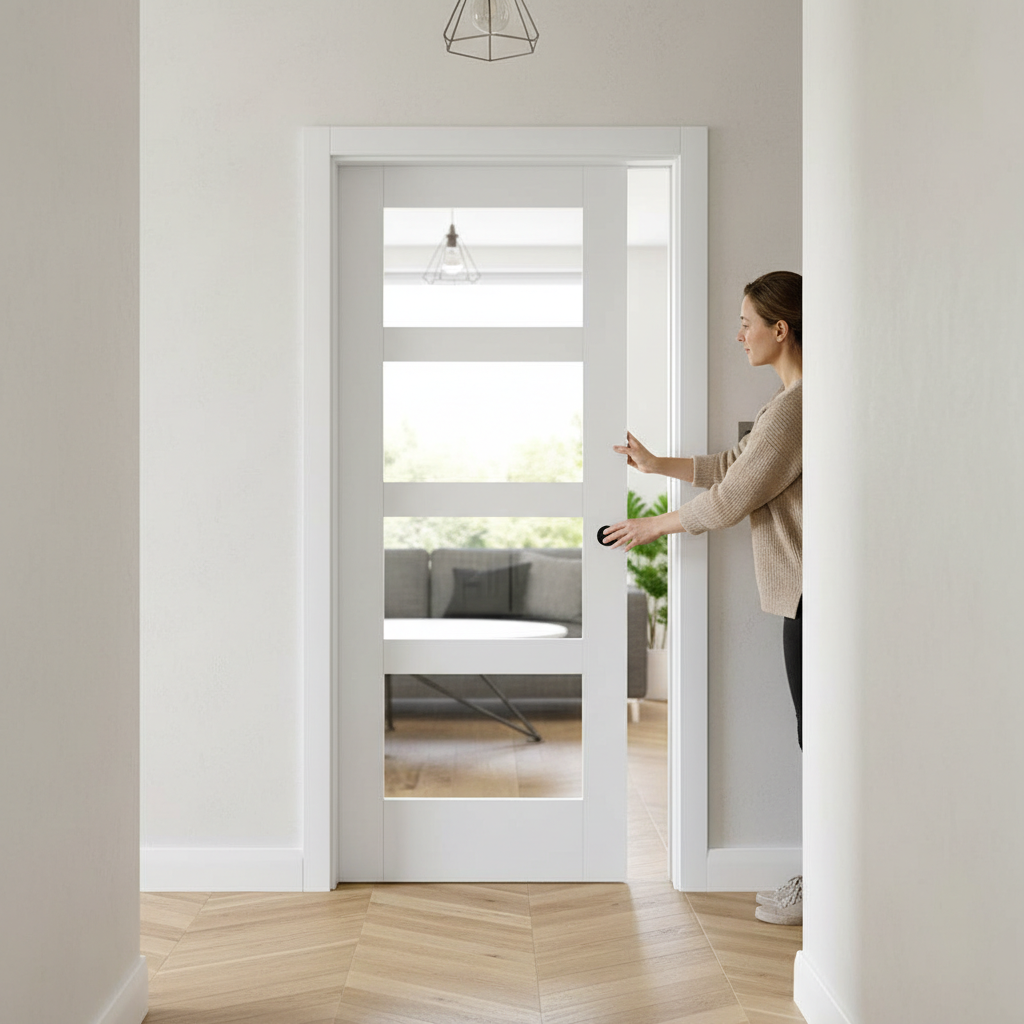

This Premium Fire Rated Pocket Door System is supplied complete with a White Glazed 4 Light Fire Door. This innovative system allows you to slide the door straight into a discreet pocket hidden within the cavity, maximizing space and functionality.
The pocket frame is constructed from strong galvanised steel and comes with all necessary track and fixings for a complete installation. The cassette system includes a comprehensive timber lining kit (jambs), ensuring a perfect finish.
There is no bottom track or threshold strip; the single pocket door frame is top hung from a track. Inside the track, runners are attached to the top of the door via a bracket, allowing for a seamless floor without interruptions. Optional accessories such as soft door closers, flush door pulls, and bathroom locks can be purchased separately.
Key Features
- Designed for use with 44mm FD30 rated fire doors
- FD30 - 30 Minutes Fire Rated Door System
- 44mm Thick Fire Door for enhanced safety
- Durable galvanised steel frame featuring a quick-click assembly
- Runners tested for up to 100,000 cycles (approximately 25 years of average use)
- Adjustable protrusion of the door from the pocket
- Jamb kit made from finger-jointed fir, unfinished for painting or staining
- Door guide slots into a channel on the underside, ensuring smooth operation even if the door warps
- 15-year guarantee on the complete pocket door system and runners
Dimensions & Specifications
| Door Panel Size (Width x Height) | Pocket Frame Dimensions (Width x Height) |
|---|---|
| 686 x 1981 mm | 1449 x 2056 mm |
| 762 x 1981 mm | 1625 x 2056 mm |
| 838 x 1981 mm | 1701 x 2056 mm |
| 726 x 2040 mm | 1488 x 2115 mm |
| 826 x 2040 mm | 1688 x 2115 mm |
Accessories
A fully approved self-closing mechanism is also available. Please consult with your Building Inspector to determine if your application requires a self-closer.
Our pocket door systems can be customized with made-to-measure options. Please inquire for more information on bespoke options.
FAQ
-
What is the fire rating of this door system?
This pocket door system is FD30 rated, providing 30 minutes of fire resistance. -
Can I adjust the door's protrusion?
Yes, the system allows for adjustment of how far the door protrudes from the pocket. -
What is the warranty on the system?
The complete pocket door system and runners come with a 15-year guarantee.
