Premium Extra Slim 3L Fire-Rated Double Pocket Door System with Custom-Made Fire Doors and Galvanised Steel Frame

Product Overview

Create the ultimate look with these sleek and stylish pocket doors. If you are looking for fire-rated pocket doors, then look no further.

This fire-rated pocket door system is supplied complete with custom-made white doors. The system allows you to slide the doors straight into discreet pockets hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system comes with a comprehensive fire-rated timber lining kit (jambs) and architrave for a perfect installation.

There is no bottom track or threshold strip; this pocket door system is top-hung from a track. Inside the track, runners are attached to the top of the door via a bracket, allowing for a seamless look without disturbance to your flooring. Accessories such as soft door closers, flush door pulls, and bathroom locks can be purchased separately for the perfect finish.

Please Note: The door jambs are 120mm, which is the finished wall thickness. The frame is 70mm and requires two layers of 12.5mm fibreboard on either side to achieve the finished wall thickness of 120mm.

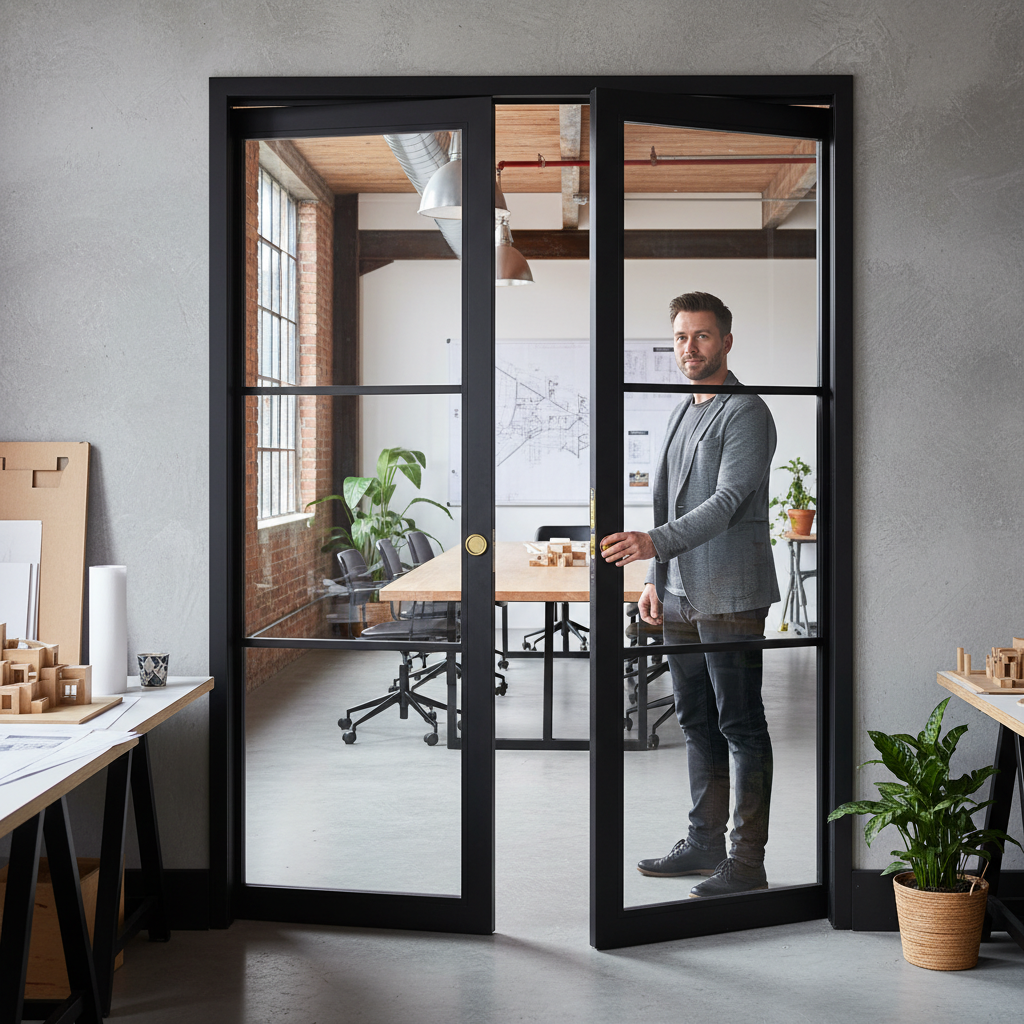

The doors are shown in a black painted finish but will be supplied white primed and ready for the final finish, which must be carried out on-site.

Door Specifications

• Custom-made to your requirements
• 15mm Extra Slim Rails
• 100mm Stile Size (Outer Edge)
• FD30 - 30 Minutes Fire Rating
• Clear Fire Glass
• Obscure Fire Glass Available
• Supplied White Primed Ready for Final Finish
• Matching Frame Available
• Black VP intumescent seals
• Also Available in 4L Design
• Matching Single Door Also Available

Set Includes

• Custom Made White 3L Fire Doors
• FD30 - 30 Minutes Fire Rated Door System
• 120mm Jambs (wall thickness)
• 44mm Thick Doors
• Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of a full pocket and track.
• Runners tested to 100,000 cycles (approximately 25 years of average use)
• Can be adjusted to determine how far the door protrudes from the pocket.
• The jamb kit is made from finger-jointed fir that is unfinished and ready to paint/stain.
• Door guide slots into a channel on the underside of the door, ensuring smooth operation if the door warps.
• 15-year guarantee on the complete pocket door system.

Dimensions & Specifications

FAQ

• What is the fire rating of the door system? The door system has an FD30 fire rating, providing 30 minutes of fire resistance.
• Can I customize the size of the doors? Yes, the doors are custom-made to your requirements.
• What is the warranty on the pocket door system? The complete pocket door system comes with a 15-year guarantee.
