Premium Fire Pocket Door System with Obscure Glazed Door, Galvanized Steel Frame, and Maintenance-Free Track for Seamless Installation
Premium Fire Pocket Door System with Obscure Glazed Door, Galvanized Steel Frame, and Maintenance-Free Track for Seamless Installation
Product Overview

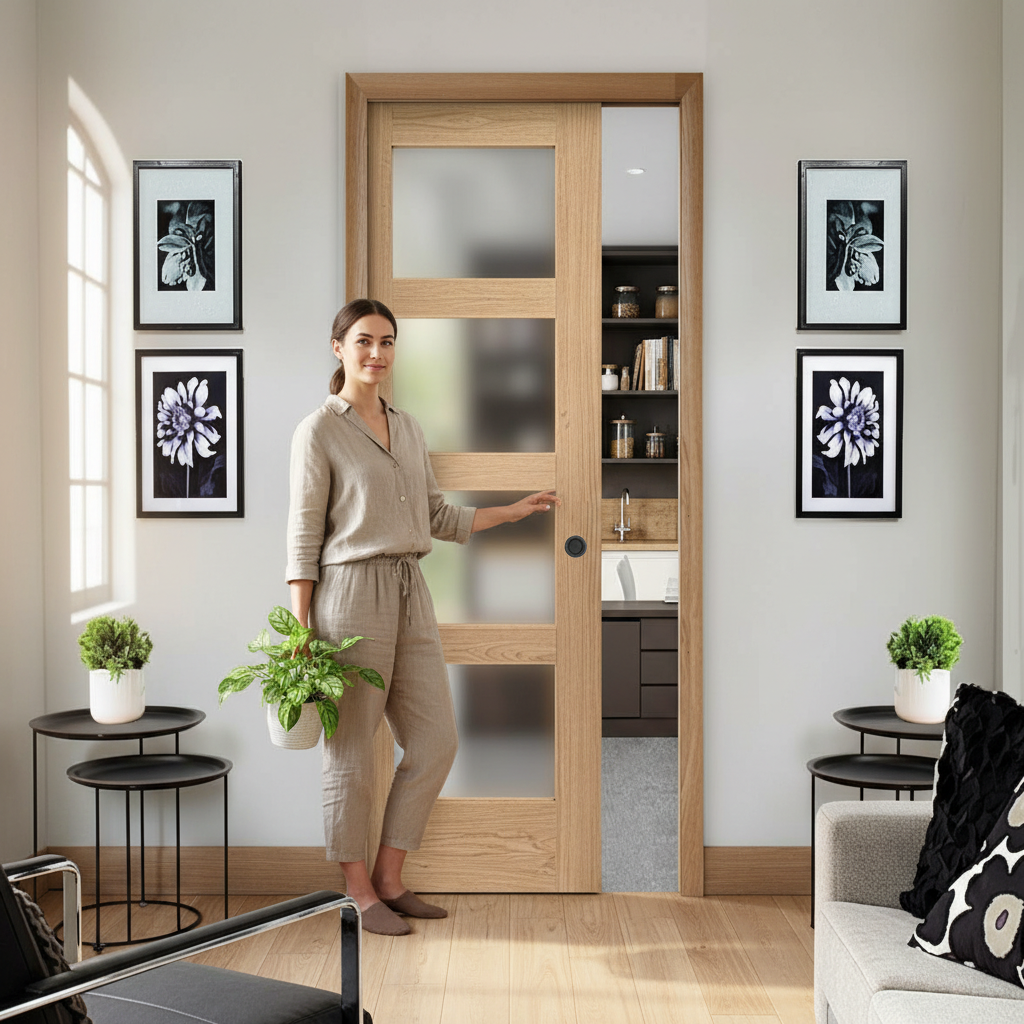

This Premium Fire Pocket Door System is supplied complete with an Oak Shaker 4L Obscure Glazed Fire Door. This system allows you to slide the door straight into a discreet pocket, which is hidden within the cavity. The pocket frame is constructed from galvanized steel and includes the necessary track and fixings. Additionally, the cassette system comes with a comprehensive timber lining kit (jambs) to ensure a perfect installation.
The door jambs are available in a finished wall thickness of 100mm. The jamb kits are crafted from a special hardwood known as Pterygota bequaertii, commonly referred to as Koto, and are supplied unfinished with a pre-treatment of intumescent primer.
Notably, there is no bottom track or threshold strip. Like all our pocket door systems, the single pocket door frame is top-hung from a track. Inside this track, runners are attached to the top of the door via a bracket. This design eliminates the need for a threshold strip or track on the floor, allowing your flooring to continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls, and bathroom locks can be purchased separately.
Door Specifications
- Engineered construction for added strength, stability, and performance
- Product supplied unfinished, ready to paint or stain
- A-Grade American White Oak Veneer
- Half-hour fire rated door
- Toughened safety glass conforms to BS EN 12150
- Paint N Peel System for easy finishing
- 10-year manufacturers defect guarantee
- Engineered components including laminated timber for improved performance
Set Includes
- FD30 Set complete with fire-rated pocket frame and fire-rated door
- Includes Oak Shaker 4L Obscure Glazed Fire Door
- Includes fire-rated pocket frame
- Maintenance-free track and runners
- Fully adjustable front and rear doorstop
- Runners tested to 100,000 cycles (approximately 25 years of average use)
- Anti-warp door profile
- 100mm Jambs (wall thickness)
- Self-centering floor guide
- 15-year guarantee on the complete steel pocket system and runners
- Fully tested and approved by International Fire Consultants
- Compatible with self-closing mechanisms
- Compatible with BIAS Anti Slam Soft Close Mechanism
Overall Frame Dimensions with Door Panel Sizes
| Specification | Measurement |
|---|---|
| Door Panel Size | 762 x 1981 mm |
| Overall Frame Size | 1625 x 2056 mm |
Technical Specifications
- Fire Rating: FD30 (Half-hour fire rated)
- Material: A-Grade American White Oak Veneer
- Glass: Toughened safety glass conforming to BS EN 12150
- Jamb Thickness: 100mm
- Guarantee: 10 years on the door, 15 years on the pocket system
FAQs
What is the fire rating of the door?
The door has a half-hour fire rating (FD30).
Can I paint or stain the door?
Yes, the door is supplied unfinished and is ready for painting or staining.
How long is the guarantee on the pocket system?
The pocket system comes with a 15-year guarantee.
