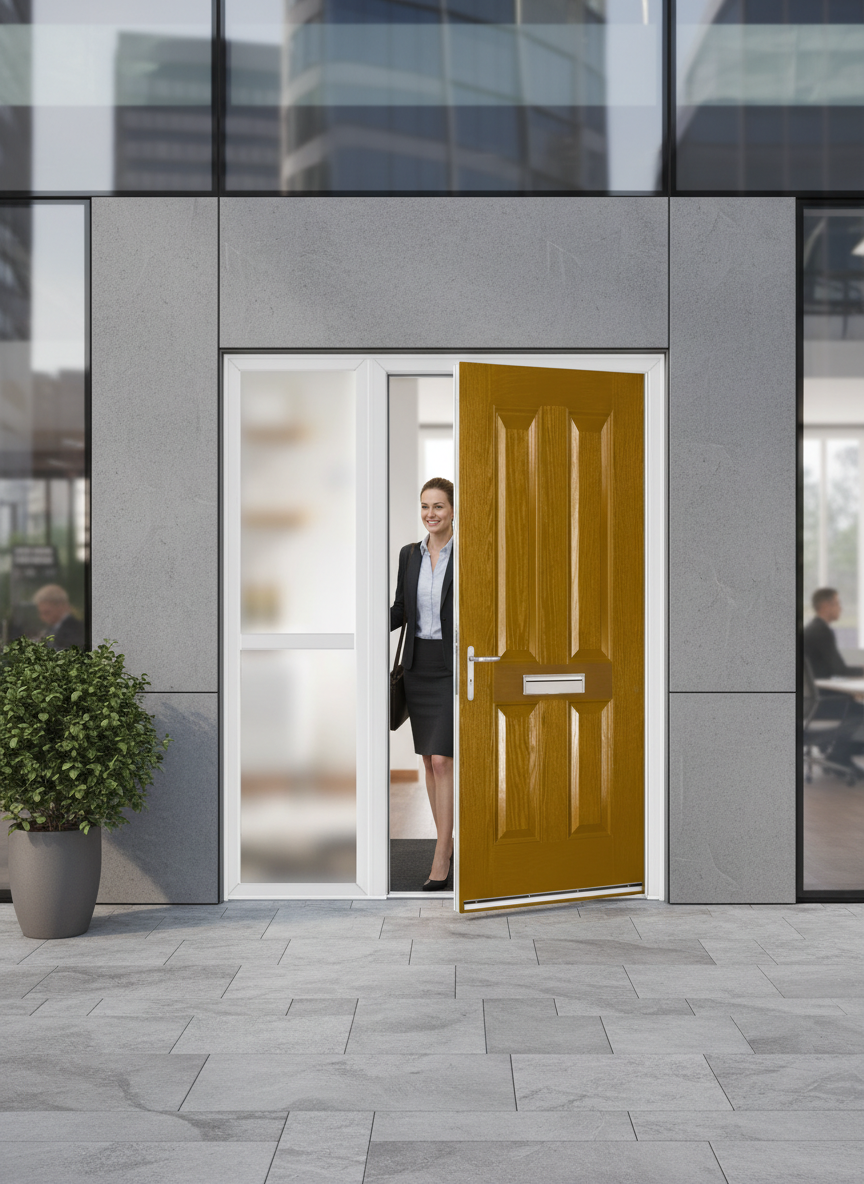

Premium External Fire Doorset with Sidelight - 30 Minute Fire Resistance, Multipoint Locking System and Thermal Efficiency

Product Overview

This Premium External Fire Doorset with Sidelight is designed to meet rigorous fire safety standards. Offering 30-minute fire resistance according to BS 476 part 22 and smoke resistance to BS 476 part 31:1, this doorset is both durable and secure.

Key Features

• High-performance GRP solid-core construction for maximum durability
• Half-hour fire resistance compliant with BS 476 part 22
• Resistance to smoke passage compliant with BS 476 part 31:1
• Supplied complete with frame and ironmongery, ready to install
• Versatile options for external and internal finishes

Non-Secured By Design Includes:

• White PVC Fire-check Frame
• Multipoint Locking System
• Overhead Closer Fitted as Standard
• Fire Rated Hinges
• Choice of 11 Colours for the External Face
• White Internal Face
• Door Handle Included - Choose from Silver or Brass finish

Secured by Design Doorsets Include:

• Door Leaf Type: Solid timber core
• Choice of 11 Colours for the External Face
• Outer Frame Type: White PVCu extruded
• Intumescent Seals: Applied to key areas for enhanced fire safety
• Threshold: Slimline with fire retardant seal ·Low Mobility compliant
• Timber Cill options available
• 4 Nico Lift-off hinges
• ERA Surefire 4 point autofire locking system
• 3* Key-thumb turn cylinder with 3 keys
• Handle: Lever-lever
• Optional 180-degree fire-rated viewer
• Optional Urn knocker
• Optional fire-rated TS008 letter plate with integral cowl
• Rutland TS5204 overhead closer included
• Optional hook type security chain
• Hardware finish options: Gold or Silver

Sidelight Features

• PVC framed glazed sidelight
• Fire rated glass available in Clear or Obscure (Stippolyte)
• Sidelights available in widths of 250mm, 400mm, or 600mm

Certification and Accreditations

• Fire tested to: BS 476: Part 20/22:1987, EN 1634-1: 2014 + A1:2018
• Smoke Control test: EN 1634-3: 2004
• CE Marking: External ·Yes
• PAS 24 / Secured By Design: Compliant with PAS 24 2016

Dimensions & Specifications

FAQ

• What is the fire resistance rating of this doorset?
  This doorset has a fire resistance rating of 30 minutes.
• What color options are available for the external face?
  There are 11 color options available for the external face.
• Is a letter plate included?
  A letter plate is optional and can be selected when ordering.
