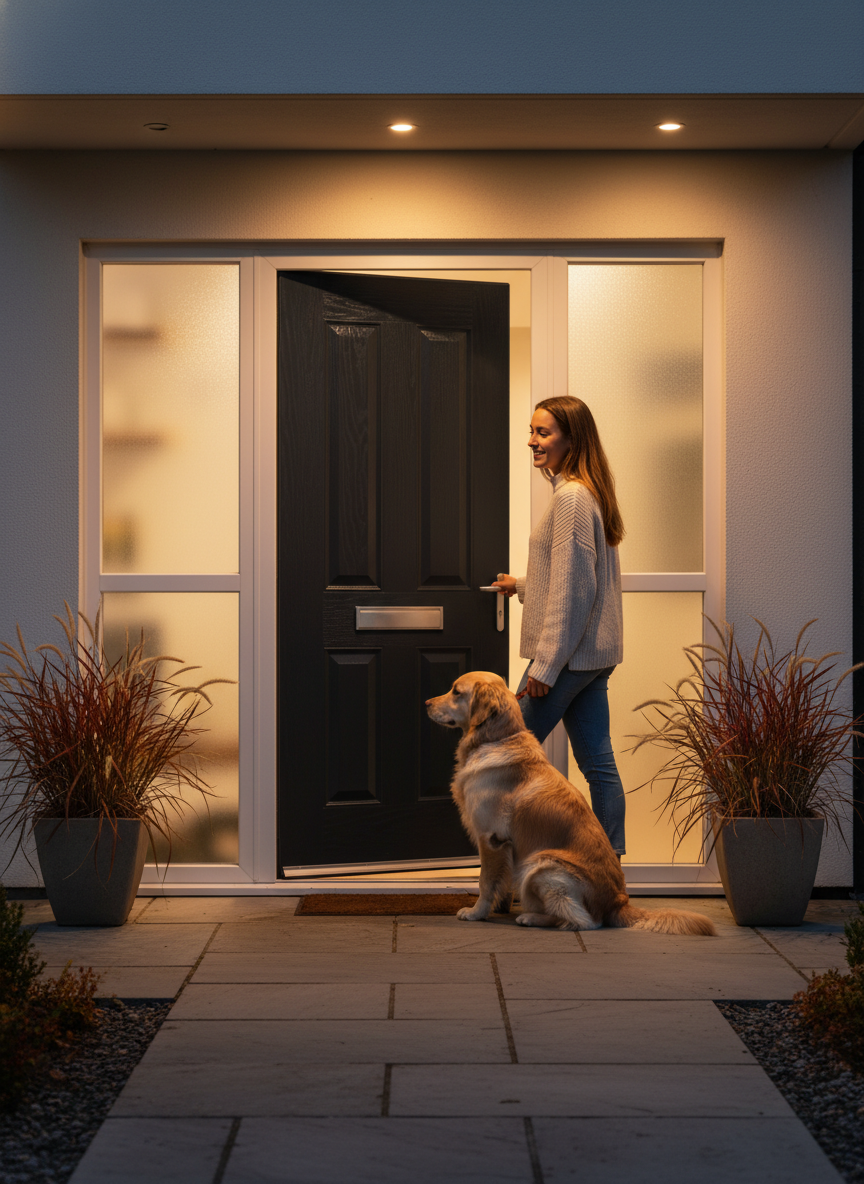

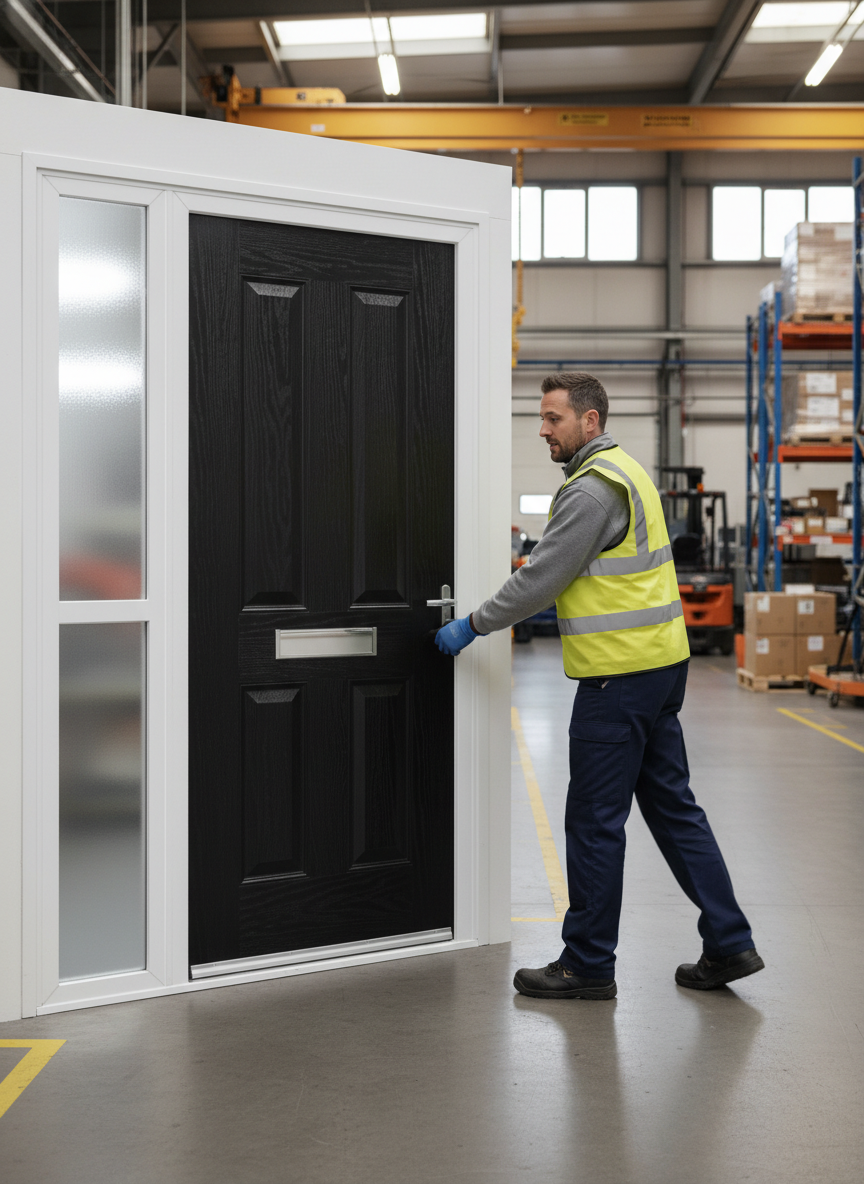

Premium External Fire Door Set with Sidelight - Solid-Core GRP, 30 Minute Fire Resistance, Multipoint Locking, and Thermal Efficiency

Product Overview

This Premium External Fire Door Set is designed to meet rigorous fire safety demands while ensuring durability and security. Constructed as a solid-core fire door, it offers unparalleled protection with 30-minute fire resistance to BS 476 part 22 and resistance to smoke passage to BS 476 part 31:1.

Fire Door Features

• 30 and 60-minute timber doors available with Kitemark (PAS 23 AND 24)
• Glass-reinforced door sets for maintenance-free operation
• Excellent thermal efficiency
• Supplied complete with frame and ironmongery, ready to hang
• Options for secure design compliance when used as the main external door

Specifications

Choose between two categories of door sets:

Non-Secured By Design Includes:

• White PVC Fire-check Frame
• Multipoint Locking System
• Overhead Closer Fitted as Standard
• Fire Rated Hinges
• Choice of 11 Colours for the External Face
• White Internal Face
• Door Handle Included - Choose from Silver or Brass finish

Secured by Design Doorsets Include:

• Door Leaf Type: Solid timber core
• Choice of 11 Colours for the External Face
• Outer Frame Type: White PVCu extruded
• Intumescent Seals applied to various components
• Threshold: Slimline with fire retardant seal ·Low Mobility compliant
• Timber Cill options available
• Hinges: 4 Nico Lift off hinges
• Lock: ERA Surefire 4 point autofire locking system
• Cylinder: 3* Key-thumb turn cylinder with keys included
• Handle: Lever-lever
• Optional 180 degrees fire-rated viewer
• Optional urn knocker
• Optional fire-rated TS008 Letter plate with integral cowl
• Closer: Rutland TS5204 overhead closer
• Optional hook type security chain
• Hardware finish available in Gold or Silver

Sidelight Features

• PVC framed glazed sidelight
• Fire rated glass options
• Available with Clear or Obscure (Stippolyte) glass
• Sidelights available in three widths: 250mm, 400mm, and 600mm

Certification and Accreditations

• Fire tested to: BS 476: Part 20/22:1987 EN 1634-1: 2014 + A1:2018
• All door sets are bi-directionally tested for safety

Dimensions & Specifications

FAQs

• What is the fire resistance rating of this door? The door offers a 30-minute fire resistance rating.
• Can this door be customized in terms of color? Yes, there are 11 color options available for the external face.
• Is the sidelight fire rated as well? Yes, the sidelight features fire rated glass.
