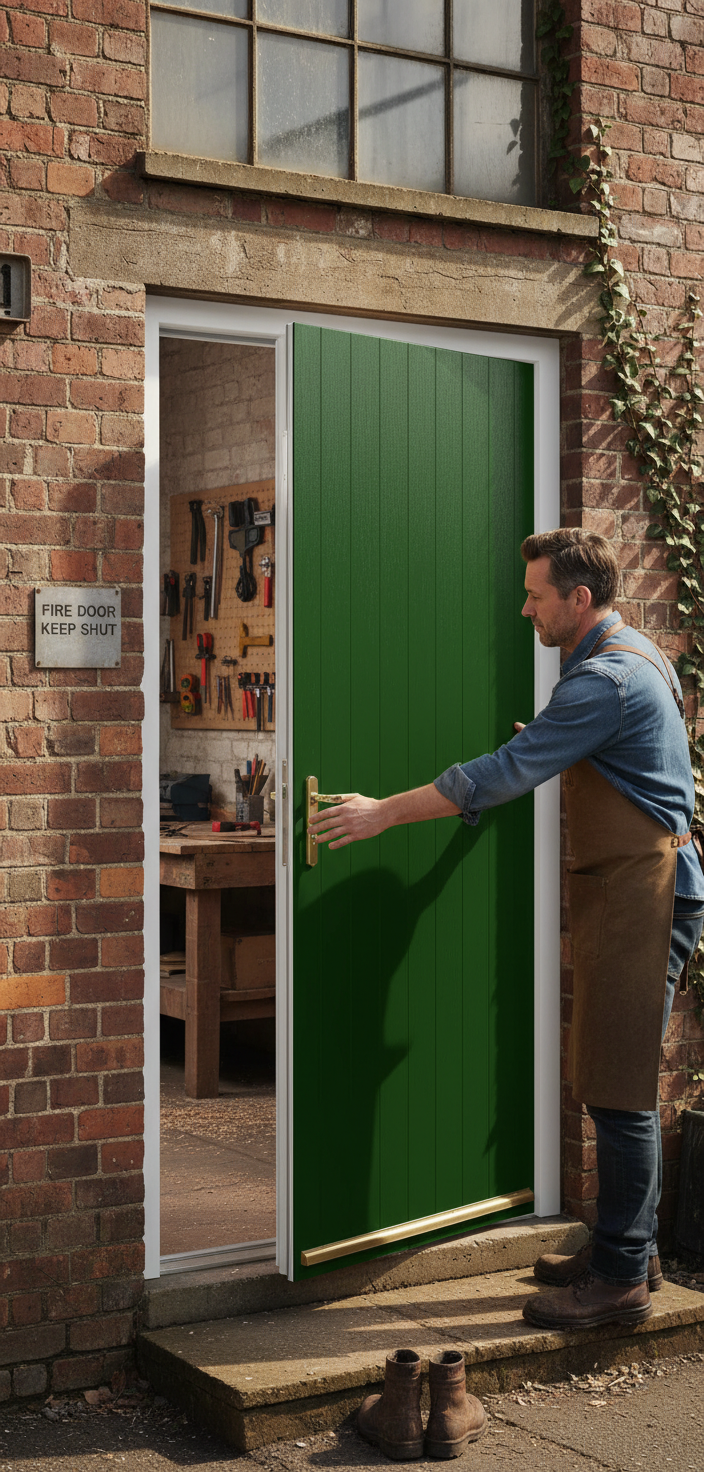

Premium Tongue and Groove External Fire Door Set with 30-Minute Fire Resistance and Versatile Design Options

Product Overview

This Premium Tongue and Groove External Fire Door Set is designed to perform and meet the rigorous demands of fire safety. Featuring a solid-core construction, this door set offers unparalleled durability and security. It provides a half-hour fire resistance to BS 476 part 22 and resistance to the passage of smoke to BS 476 part 31:1.

Available in both 30 and 60-minute timber door options bearing the Kitemark (PAS 23 AND 24), this range of versatile, maintenance-free glass-reinforced door sets meets mandatory requirements while also providing excellent thermal efficiency. The door set is supplied complete with frame and ironmongery, making it ready to hang into your opening.

Key Features

• 30-minute fire resistance rating
• Solid-core construction for enhanced durability
• Half-hour fire resistance to BS 476 part 22
• Resistance to smoke passage to BS 476 part 31:1
• Complete with frame and ironmongery

Options Available

If the fire door is being used as the main external door and requires a letter plate, compliance with the latest regulations mandates selecting the "secure by design" option.

Non-Secured By Design Includes:

• White PVC Fire-check Frame
• Multipoint Locking System
• Overhead Closer Fitted as Standard
• Fire Rated Hinges
• Choice of 11 Colours for the External Face
• White Internal Face
• Door Handle Included: Choose from Silver or Brass finish

Secured by Design Doorsets Include:

• Door Leaf Type: Solid timber core
• Choice of 11 Colours for the External Face
• Outer Frame Type: White PVCu extruded
• Intumescent Seals: Applied to the top and bottom of the door leaf, to the internal rebate and outside of the outer frame, and selected components
• Threshold: Slimline with fire retardant seal ·Low Mobility compliant
• Timber Cill options available
• Hinges: 4 Nico Lift off hinges
• Lock: ERA Surefire 4 point autofire locking system with adjustable keeps
• Cylinder: 3* Key-thumb turn cylinder, with 3 keys
• Handle: Lever-lever
• Viewer: 180 degrees fire-rated viewer (optional)
• Knocker: Urn knocker (optional)
• Letter plate: Fire-rated TS008 Letter plate with integral cowl (optional)
• Closer: Rutland TS5204 overhead closer
• Security Chain: Hook type (optional)
• Hardware finish: Gold or Silver

Certification and Accreditations

• Fire tested to: BS 476: Part 20/22:1987 and EN 1634-1: 2014 + A1:2018. All door sets are bi-directionally tested.
• Smoke Control test: EN 1634-3: 2004
• CE Marking: External ·Yes
• PAS 24 / Secured By Design: PAS 24 2016 specification and Secured by Design accredited
• All fire door sets meet current building regulations

Dimensions & Specifications

FAQ

• What is the fire resistance rating of this door set?
  The door set has a fire resistance rating of 30 minutes.
• Can I choose the color of the external face?
  Yes, there is a choice of 11 colors available for the external face.
• Is the door set compliant with building regulations?
  Yes, all fire door sets meet current building regulations.
