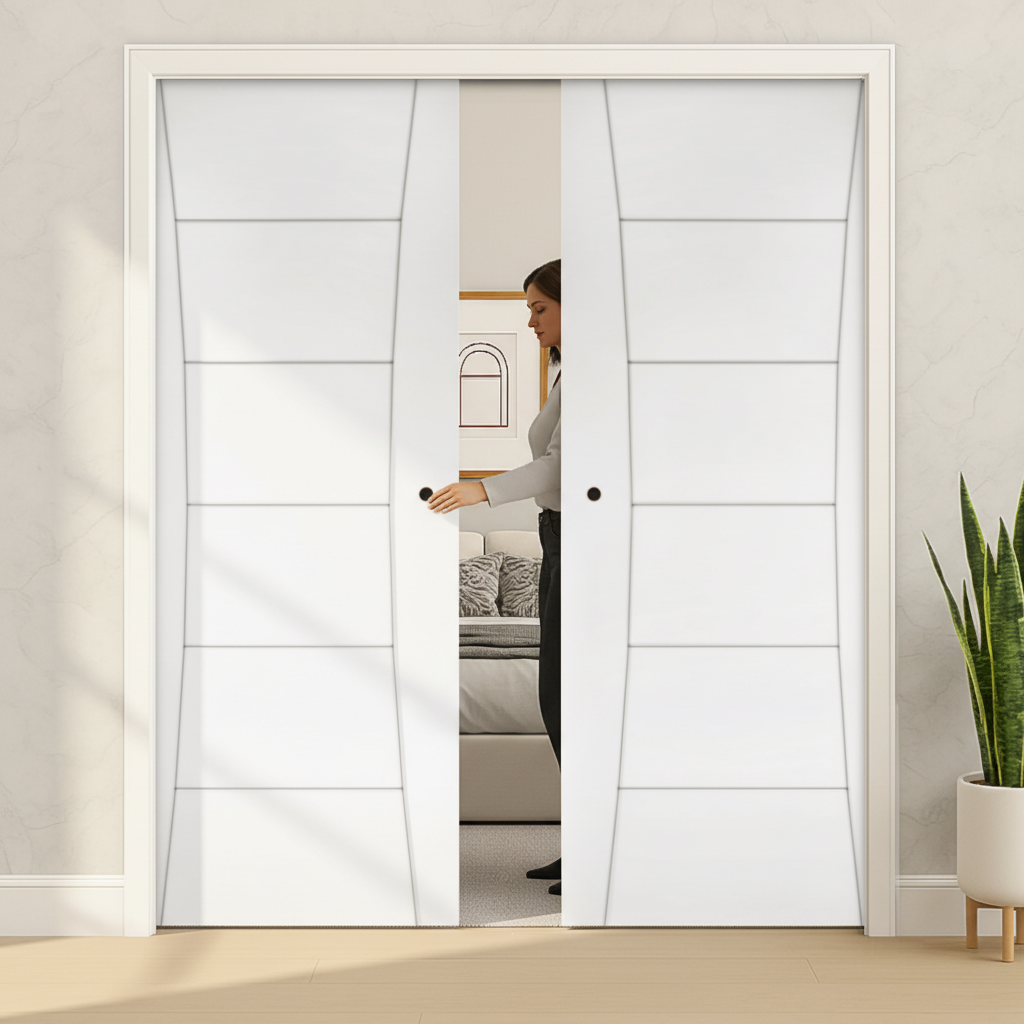

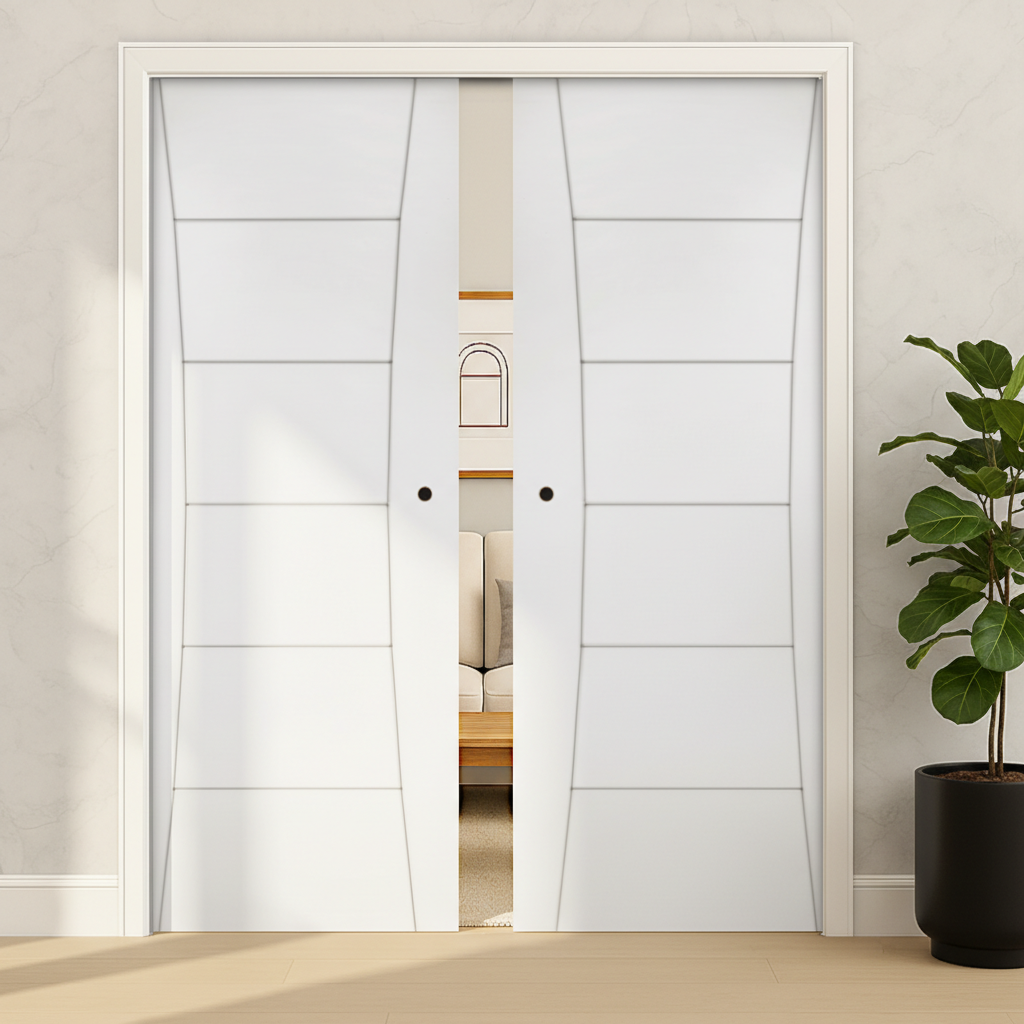

Premium Double Pocket Door System with Galvanised Steel Frame and Adjustable Jambs for Elegant Spaces

Product Overview

The Premium Double Pocket Door System showcases sophisticated design through its masterful interplay of horizontal and vertical elements. Precisely spaced horizontal lines create visual rhythm, while graceful vertical curves add dynamic movement and elegance. This striking combination delivers contemporary style that transforms any space, making it an ideal choice for those seeking doors that balance modern aesthetics with refined craftsmanship.

This double door system allows you to slide the doors straight into the discreet pockets which are hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system is supplied with a comprehensive timber lining kit (jambs) to finish the installation perfectly.

The door jambs are available in two size options, 100mm or 125mm. If you are using 3" studwork, then you would require 100mm jambs, giving you a finished wall thickness of 100mm when finished with 12.5mm plasterboard. If you are using 4" studwork, then you would require the 125mm jambs as the overall wall thickness would be 125mm when using 125mm plasterboard.

There is no bottom track or threshold strip. As with all pocket door systems, the pocket door frame is top hung from a track. Inside the track, there are runners which are attached to the top of the doors via a bracket. This means there is no threshold strip or track in the floor, allowing your flooring to continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls, and bathroom locks can all be purchased separately.

Features

• 35mm thick doors
• Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising a full pocket and track.
• Runners are tested to 100,000 cycles (that? around 25 years of average use).
• Can be adjusted to determine how far the doors protrude from the pockets.
• The jamb kit is made from finger-jointed fir that is unfinished, ready to paint/stain.
• Door guide slots into a channel on the underside of the doors. Not visible but ensures that if your doors warp, they continue to slide smoothly.
• Maintenance-free track and runners.
• 15-year guarantee on the complete steel pocket system and runners.

Dimensions & Specifications

Technical Specifications

• Material: Galvanised Steel Frame
• Frame Thickness: 35mm
• Runner Life Span: 100,000 cycles
• Jamb Material: Finger-Jointed Fir
• Finish: Unfinished, ready to paint/stain

FAQs

• Do I need a bottom track for installation?
  No, the system is top hung and requires no bottom track or threshold strip.
• What is the guarantee on this system?
  The complete steel pocket system and runners come with a 15-year guarantee.
• Can I adjust the door protrusion from the pockets?
  Yes, the system can be adjusted to determine how far the doors protrude from the pockets.
