Premium Double Pocket Door System with Oak 4 Panel Doors, Galvanised Steel Frame, and Adjustable Jambs for Seamless Installation
Premium Double Pocket Door System with Oak 4 Panel Doors, Galvanised Steel Frame, and Adjustable Jambs for Seamless Installation
Product Overview

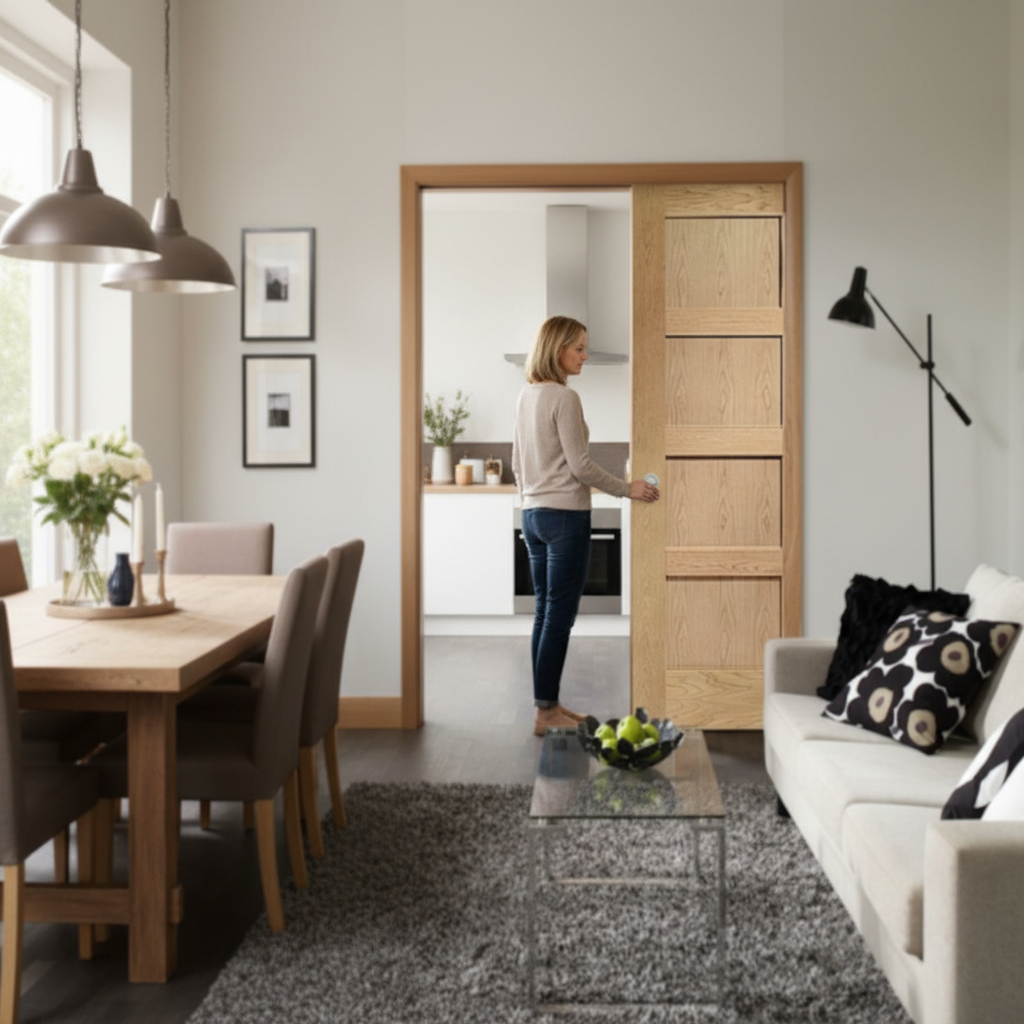

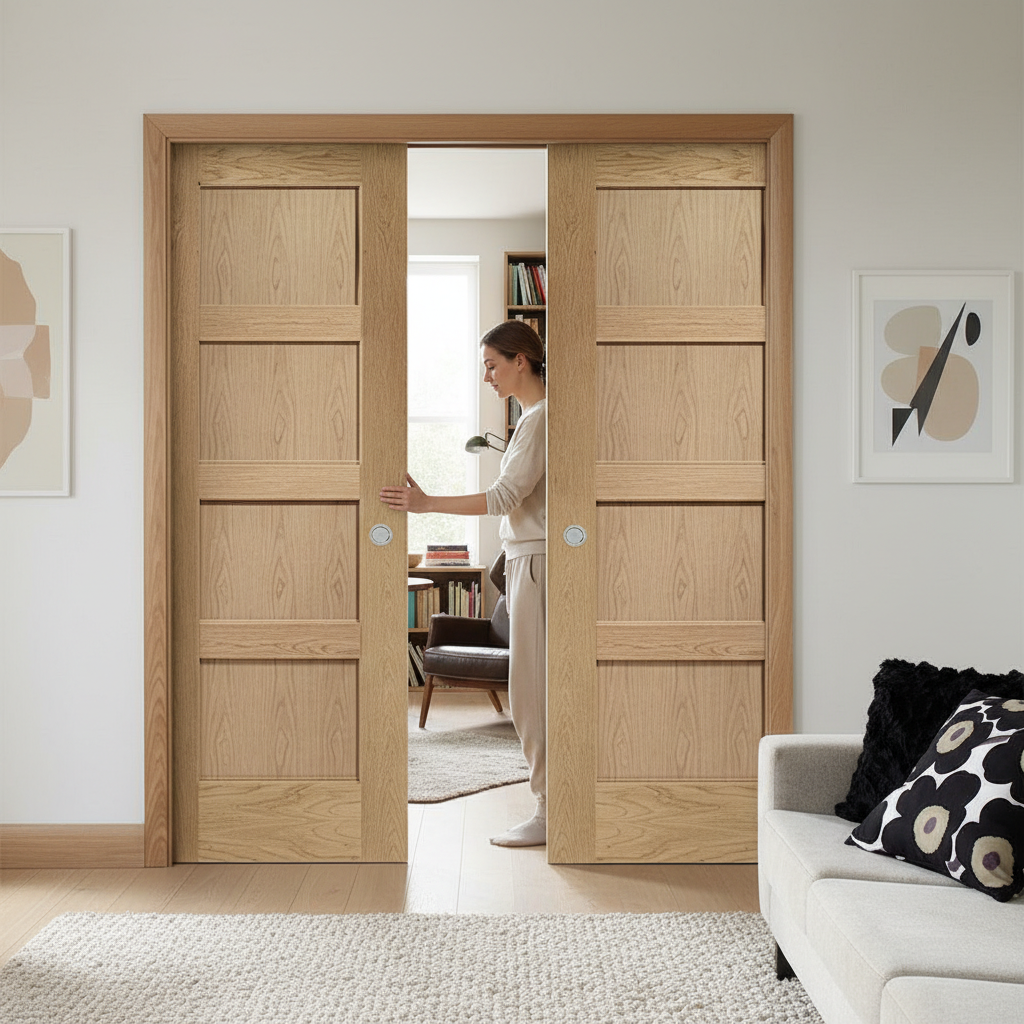

The Premium Double Pocket Door System is supplied complete with two Oak 4 Panel Doors. This double door system allows you to slide the doors straight into the discreet pockets which are hidden within the cavity. The pocket frame is constructed from strong galvanised steel and is supplied complete with the track and fixings. The cassette system comes with a comprehensive timber lining kit (jambs) to finish the installation perfectly.
Jamb Options
The door jambs are available in two size options:
- 100mm Jambs: Ideal for 3" studwork, resulting in a finished wall thickness of 100mm when finished with 12.5mm plasterboard.
- 125mm Jambs: Suitable for 4" studwork, providing an overall wall thickness of 125mm when using 125mm plasterboard.
System Features
There is no bottom track or threshold strip; the pocket door frame is top hung from a track. Inside the track, there are runners which are attached to the top of the doors via a bracket. This design means there is no threshold strip or track in the floor, allowing your flooring to continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls, and bathroom locks can all be purchased separately.
- Complete with two Oak 4 Panel Doors
- Doors are supplied unfinished, ready for final stain/paint
- Door thickness options: 35mm or 40mm
- Strong galvanised steel frame with a quick-click assembly
- Runners tested to 100,000 cycles (approximately 25 years of average use)
- Adjustable door protrusion from the pockets
- Jamb kit made from finger-jointed fir, unfinished and ready to paint/stain
- Door guide ensures smooth sliding, even if doors warp
- Maintenance-free track and runners
- 15-year guarantee on the complete steel pocket system and runners
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Width of Pocket Frame with 2 Doors | 2464mm (610 + 610 x 1981 Door Panels) |
| Width of Pocket Frame with 2 Doors | 2816mm (686 + 686 x 1981 Door Panels) |
| Width of Pocket Frame with 2 Doors | 2844mm (711 + 711 x 1981 Door Panels) |
| Width of Pocket Frame with 2 Doors | 3168mm (762 + 762 x 1981 Door Panels) |
| Width of Pocket Frame with 2 Doors | 3320mm (838 + 838 x 1981 Door Panels) |
| Width of Pocket Frame with 2 Doors | 3244mm (813 + 813 x 2032 Door Panels) |
| Width of Pocket Frame with 2 Doors | 2494mm (626 + 626 x 2040 Door Panels) |
| Width of Pocket Frame with 2 Doors | 2894mm (726 + 726 x 2040 Door Panels) |
| Width of Pocket Frame with 2 Doors | 3294mm (826 + 826 x 2040 Door Panels) |
| Width of Pocket Frame with 2 Doors | 3694mm (926 + 926 x 2040 Door Panels) |
FAQs
What is the main benefit of a pocket door system?
A pocket door system allows for seamless access between rooms without the need for a floor track or threshold, providing a clean and uninterrupted look.
Can I paint or stain the doors?
Yes, the doors are supplied unfinished, allowing you to customize them with your choice of paint or stain.
How durable are the runners?
The runners are tested to withstand 100,000 cycles, which is approximately equivalent to 25 years of average use.
