Premium Double Pocket Door Set with Galvanised Steel Frame, Adjustable Track, and Comprehensive Timber Lining Kit
Premium Double Pocket Door Set with Galvanised Steel Frame, Adjustable Track, and Comprehensive Timber Lining Kit
Product Description

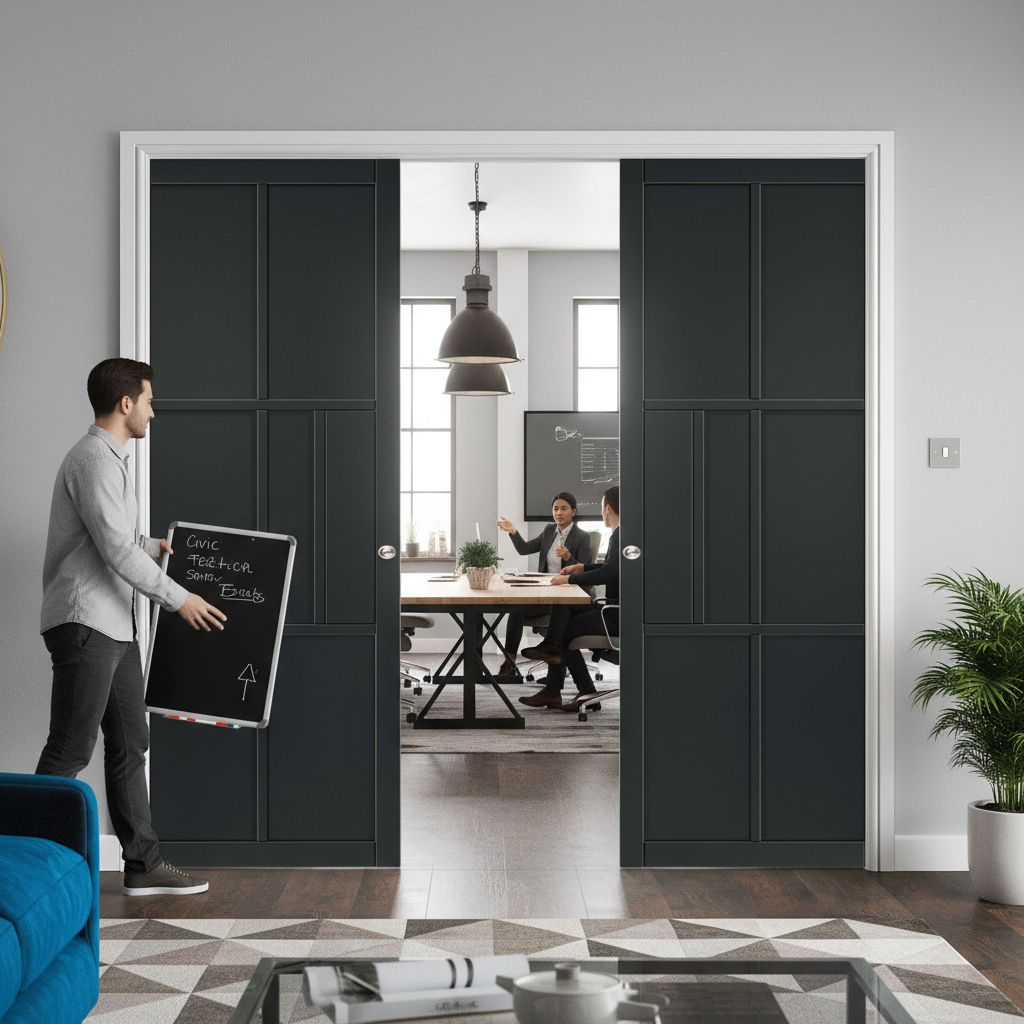

This double pocket door system allows you to slide the doors straight into a discreet pocket hidden within the wall cavity. The pocket frame is constructed from strong galvanised steel and is supplied complete with the track and fixings. The cassette system comes with a comprehensive timber lining kit (jambs) to ensure a perfect finish upon installation.
The door jambs are available in two sizes: 100mm and 125mm. For 3" studwork, the 100mm jambs should be used, resulting in a finished wall thickness of 100mm with 12.5mm plasterboard. For 4" studwork, the 125mm jambs are necessary, yielding an overall wall thickness of 125mm when using 125mm plasterboard.
This system does not include a bottom track or threshold strip. As with all pocket door systems, the frame is top-hung from a track. Runners inside the track are attached to the top of the doors via brackets, eliminating the need for a threshold strip on the floor, allowing for a continuous flooring surface through the opening.
Key Features
- Durable galvanised steel frame with quick-click assembly for easy installation.
- Runners tested to 100,000 cycles, equivalent to approximately 25 years of average use.
- Adjustable door protrusion for customizable fit.
- Unfinished finger-jointed jamb kit ready for painting or staining.
- Door guide slots into a channel on the underside, ensuring smooth operation even if the door warps.
- 15-year guarantee on the complete steel pocket system and runners.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Overall Pocket Frame Dimensions | 2464mm x 2056mm (for 610 + 610 x 1981 Door Panels) |
| Overall Pocket Frame Dimensions | 2816mm x 2056mm (for 686 + 686 x 1981 Door Panels) |
| Overall Pocket Frame Dimensions | 3168mm x 2056mm (for 762 + 762 x 1981 Door Panels) |
| Overall Pocket Frame Dimensions | 3320mm x 2056mm (for 838 + 838 x 1981 Door Panels) |
Technical Specifications
- Material: Galvanised Steel Frame
- Jamb Kit: Finger-jointed, unfinished
- Track System: Top-hung with adjustable runners
- Warranty: 15 years on the complete system and runners
FAQ
Can the door set be customized?
Yes, our pocket door systems can be supplied in made-to-measure options. Please inquire for more details on bespoke options.
How does the door stay in place?
The door is guided by a channel on the underside which ensures that even if the door warps, it continues to slide smoothly.
What accessories can be purchased separately?
Accessories such as soft door closers, flush door pulls, and bathroom locks are available for purchase separately.
