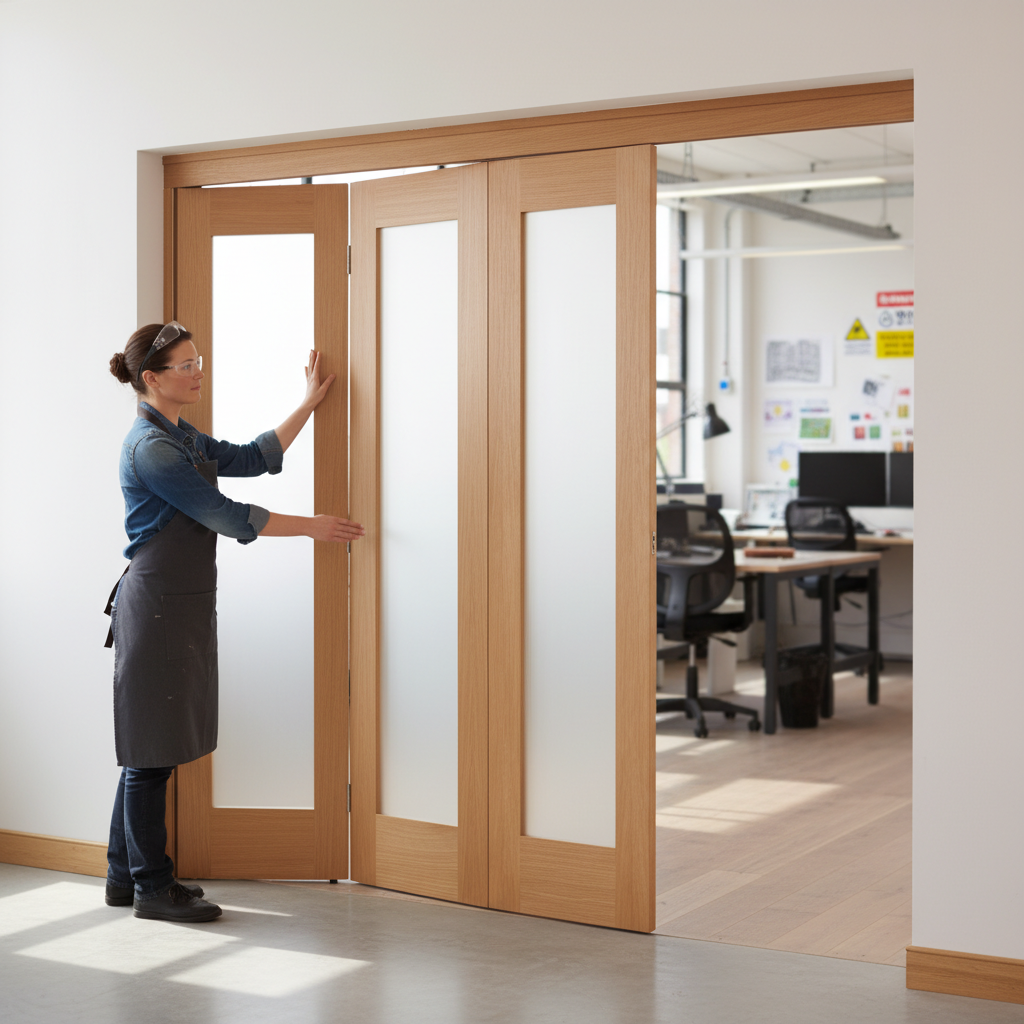

Premium Frosted Glazed Bifold Doorset with Oak Pattern Design - Top-Hung System for Enhanced Privacy and Style
Premium Frosted Glazed Bifold Doorset with Oak Pattern Design - Top-Hung System for Enhanced Privacy and Style
Product Overview
Elevate your space with our Premium Frosted Glazed Bifold Doorset, featuring a beautiful patterned oak design and frosted glass, creating a sophisticated and unique touch to any room. Enhance the look and feel of your home while still maintaining privacy.
The bifold room divider is available in 3 configurations and 3 door sizes: a 3 leaf, 4 leaf, and a 5 leaf system. The frame is supplied complete with the top track, top pivot, apron plate, bottom pivot, and chrome hinges. There is no bottom frame or floor guide with this doorset, allowing the flooring to continue seamlessly between rooms. The frame is supplied in unfinished oak, requiring priming and painting on-site.
Installation Notes
- No bottom frame is required; this system is top-hung only.
- Maximum trimming allowed on each door edge is 5mm.
- Doors are supplied unfinished, ready for onsite finishing.
- Available in three widths: 533mm, 610mm, and 686mm.
- The folding frame is supplied unfinished and ready for final finish.
Available Door Sizes
The bifold doorset is available in the following door size options: 533mm, 610mm, and 686mm.
(External frame measurements will be 10mm smaller in height and 10mm smaller in width.)
Structural Opening Sizes
| Configuration | Overall Size |
|---|---|
| 3+0 with 3x21" Doors | 2083mm x 1681mm |
| 3+1 with 4x21" Doors | 2083mm x 2214mm |
| 4+1 with 5x21" Doors | 2083mm x 2747mm |
| Configuration | Overall Size |
|---|---|
| 3+0 with 3x24" Doors | 2083mm x 1912mm |
| 3+1 with 4x24" Doors | 2083mm x 2522mm |
| 4+1 with 5x24" Doors | 2083mm x 3132mm |
| Configuration | Overall Size |
|---|---|
| 3+0 with 3x27" Doors | 2083mm x 2140mm |
| 3+1 with 4x27" Doors | 2083mm x 2826mm |
| 4+1 with 5x27" Doors | 2083mm x 3512mm |
Technical Specifications
Please be aware that the provided sizes are based on the subfloor level. If you plan to install the frames on top of a raised floor, adjustments may be necessary.
Frequently Asked Questions
-
Is finishing required for the doors?
Yes, the doors are supplied unfinished and will require onsite finishing. -
What is the maximum trimming allowed?
The maximum trimming allowed on each door edge is 5mm. -
Can the doors be installed without a bottom frame?
Yes, this system is designed to be top-hung only, eliminating the need for a bottom frame.
