Premium Extra Slim Cross Bar Fire Rated Double Pocket Door System with Custom Frame and Fire Glass Options

Product Overview

Create the ultimate look with these sleek and stylish pocket doors. If you are looking for fire-rated pocket doors, then look no further.

This Fire Pocket Door System is supplied complete with custom-made white industrial style cross bar fire doors. This door system allows you to slide the doors straight into the discreet pockets which are hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system is supplied complete with a comprehensive fire-rated timber lining kit (jambs) and architrave to finish the installation perfectly.

There is no bottom track or threshold strip, as with all pocket door systems, the pocket frame is top-hung from a track. Inside the track, there are runners which are attached to the top of the door via a bracket. This means there is no threshold strip or tracks in the floor and your flooring can continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls, and bathroom locks can all be purchased for the perfect end result.

Please Note: The door jambs are 120mm, this is the finished wall thickness. The frame is 70mm and requires two layers of 12.5mm fibreboard on either side to give the finished wall thickness of 120mm.

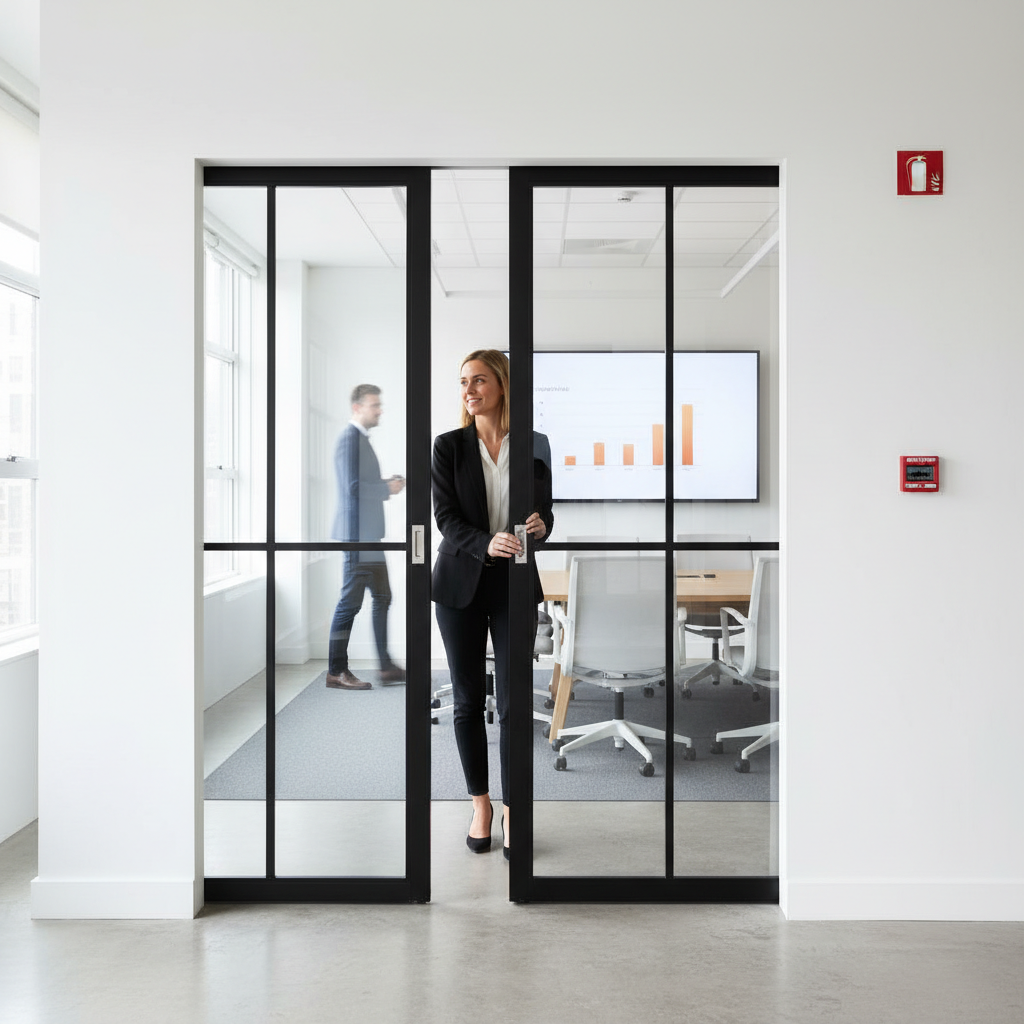

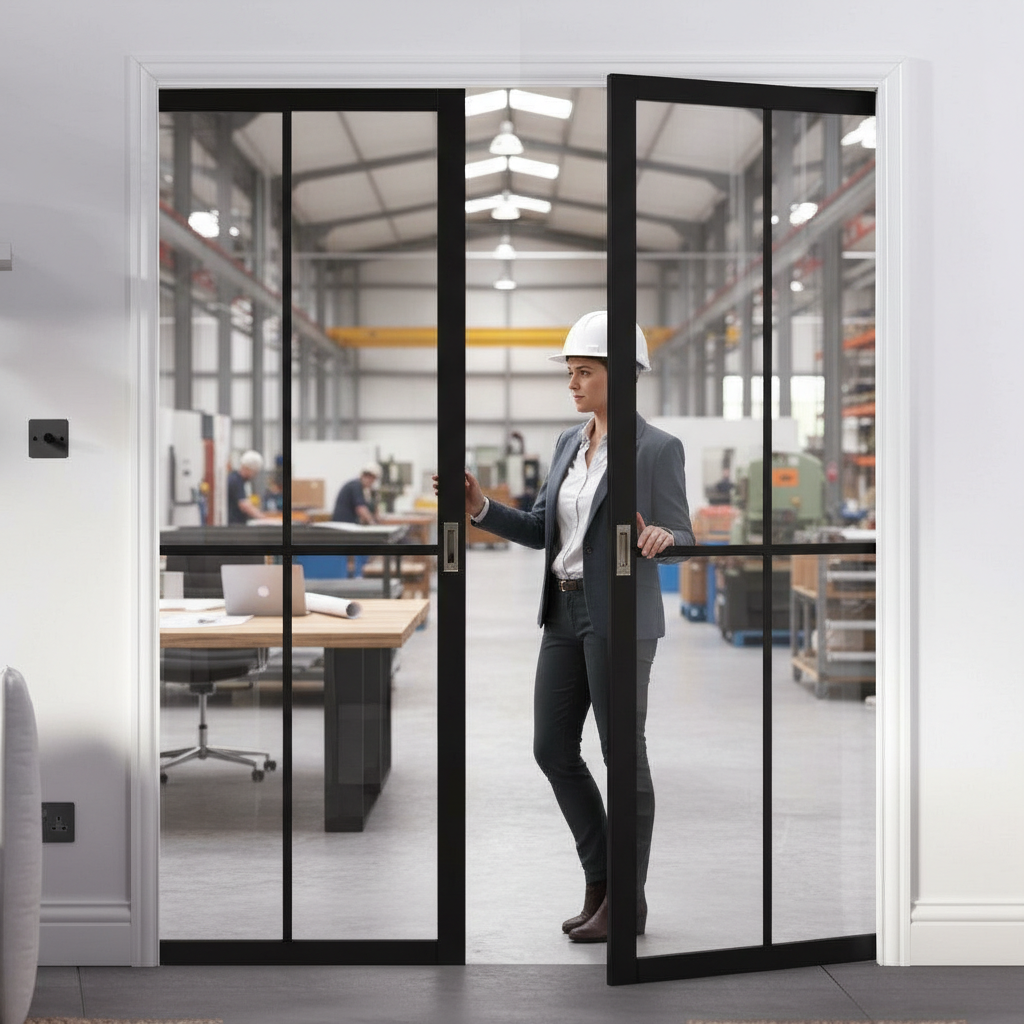

The doors are shown in a black painted finish but will be supplied white primed and ready for the final finish, which will need to be carried out on-site.

Door Specifications

• Custom-made to your requirements
• 15mm Extra Slim Rails
• 100mm Stile Size (Outer Edge)
• FD30 - 30 Minutes Fire Rating
• Clear Fire Glass
• Obscure Fire Glass Available
• Supplied White Primed Ready for Final Finish
• Matching Frame Available
• Black VP Intumescent Seals
• Also Available in 4L Design
• Matching Single Door Also Available

Set Includes

• Custom Made Industrial Style Fire Doors
• FD30 - 30 Minutes Fire Rated Door System
• 120mm Jambs (wall thickness)
• 44mm Thick Doors
• Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of a full pocket and track.
• Runners are tested to 100,000 cycles (that? around 25 years of average use)
• Can be adjusted to determine how far the door protrudes from the pocket.
• The jamb kit is made from finger-jointed fir that is unfinished and ready to paint/stain.
• Door guide slots into a channel on the underside of the door. Not visible but ensures that if your door warps it continues to slide smoothly.
• 15-year guarantee on the complete pocket door system.

Dimensions & Specifications

Frequently Asked Questions

• Can I customize the size of the doors?
  Yes, the doors are custom-made to your requirements.
• What is the fire rating of the doors?
  The doors have a fire rating of FD30, providing 30 minutes of protection.
• Is installation easy?
  Yes, the system is designed for straightforward installation with all necessary components included.
