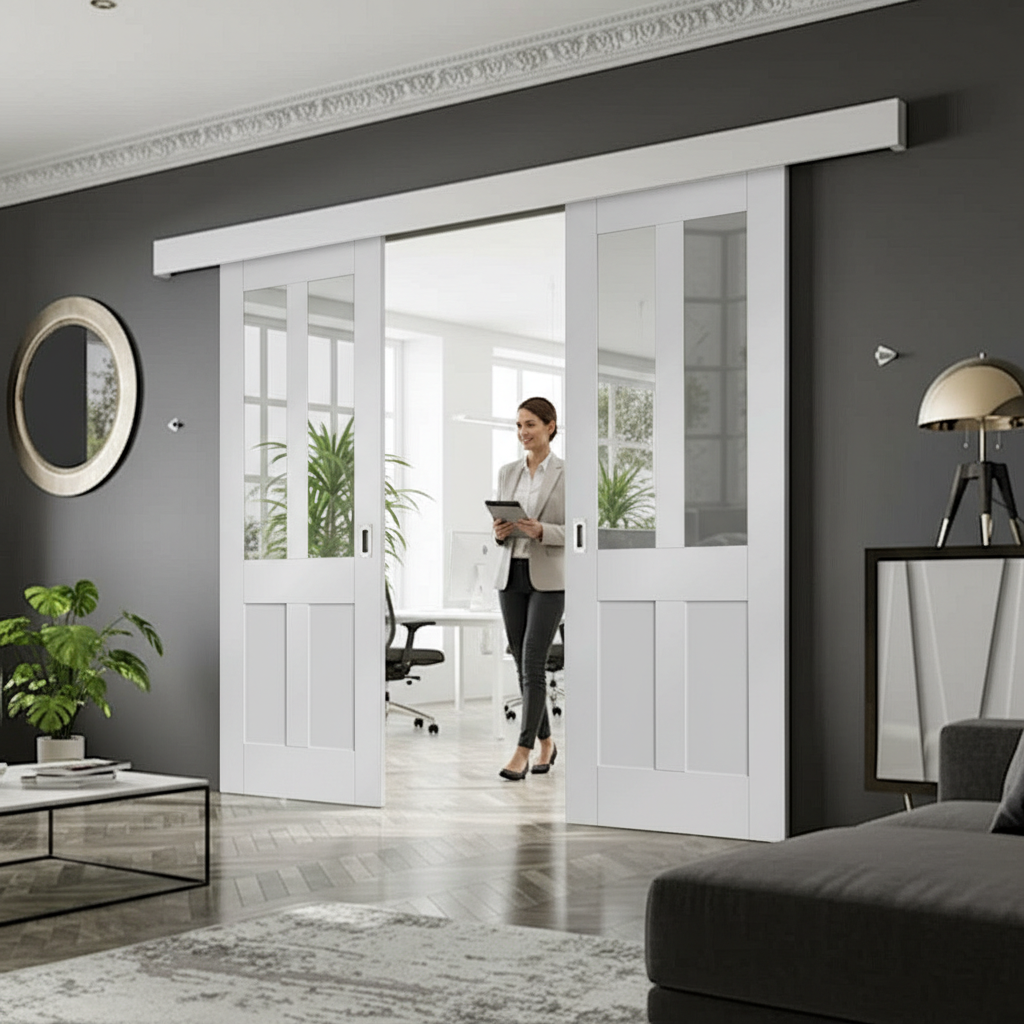

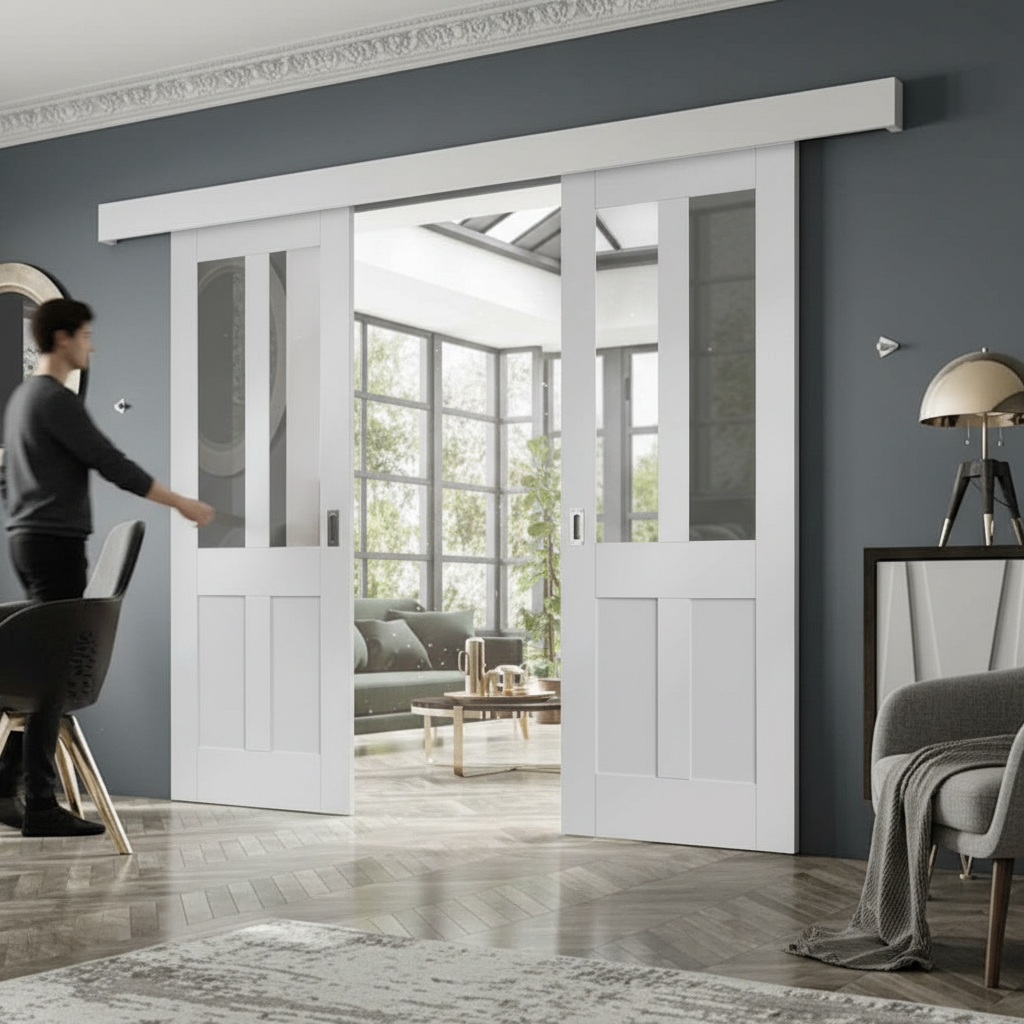

Premium Double Sliding Door System with Clear Glazed Doors, Track, and Pelmet - Ideal for Internal Use
Premium Double Sliding Door System with Clear Glazed Doors, Track, and Pelmet - Ideal for Internal Use
Product Overview
This Premium Double Sliding Door System is designed for versatility and elegance in internal spaces. It includes:
- 1 x Double Door Sliding Track including sliding mechanisms
- 1 x Double Door White Pelmet
- 2 x Clear Glazed Doors
The system allows for both single and double door opening configurations, supporting a maximum door weight of 45kg per door. It is compatible with door thicknesses of 35mm to 40mm; however, for thicker doors (up to 50mm), adjustments may be required.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Maximum Weight per Door | 45kg |
| Door Thickness Compatible | 35mm - 40mm (up to 50mm with modification) |
| Door Width Range | 610mm - 915mm |
| Pelmet Size | 3400mm |
Features and Benefits
- Top hung sliding door hardware for smooth operation
- Designed to complement standard internal white doors
- All necessary hardware mechanisms included
- FSC? Certified product ensuring responsible sourcing
- 10-year manufacturers defect guarantee for peace of mind
- Engineered components for enhanced performance and durability
Installation Notes
Ensure that the wall where the E-Glide system is fitted is free from obstructions such as skirting boards and light fittings. Single and double width pelmets come oversized for on-site trimming to fit the aperture and door widths accurately.
It is important to follow the finishing instructions provided with the doors to maintain warranty validity. Doors should not be trimmed in height from the top edge lipping, as securing hanger bolts requires full lipping thickness.
Compatibility and Usage
This system is built to work efficiently with most internal doors, excluding those with raised beads/mouldings and fire doors. The innovative design enhances both functionality and aesthetic appeal in residential and commercial settings.
FAQ
Q: Can I use this system with thicker doors?A: Yes, the system accommodates doors up to 50mm thick with some modification to the pelmet.
Q: Are all the necessary installation materials included?A: Yes, the system comes with all required hardware mechanisms for installation.
Q: What is the guarantee period for this product?A: This product comes with a 10-year manufacturers defect guarantee.
