Premium Clear Glazed Pocket Door Set with Diamond Design and Galvanized Steel Frame for Space-Saving Solutions

Product Overview

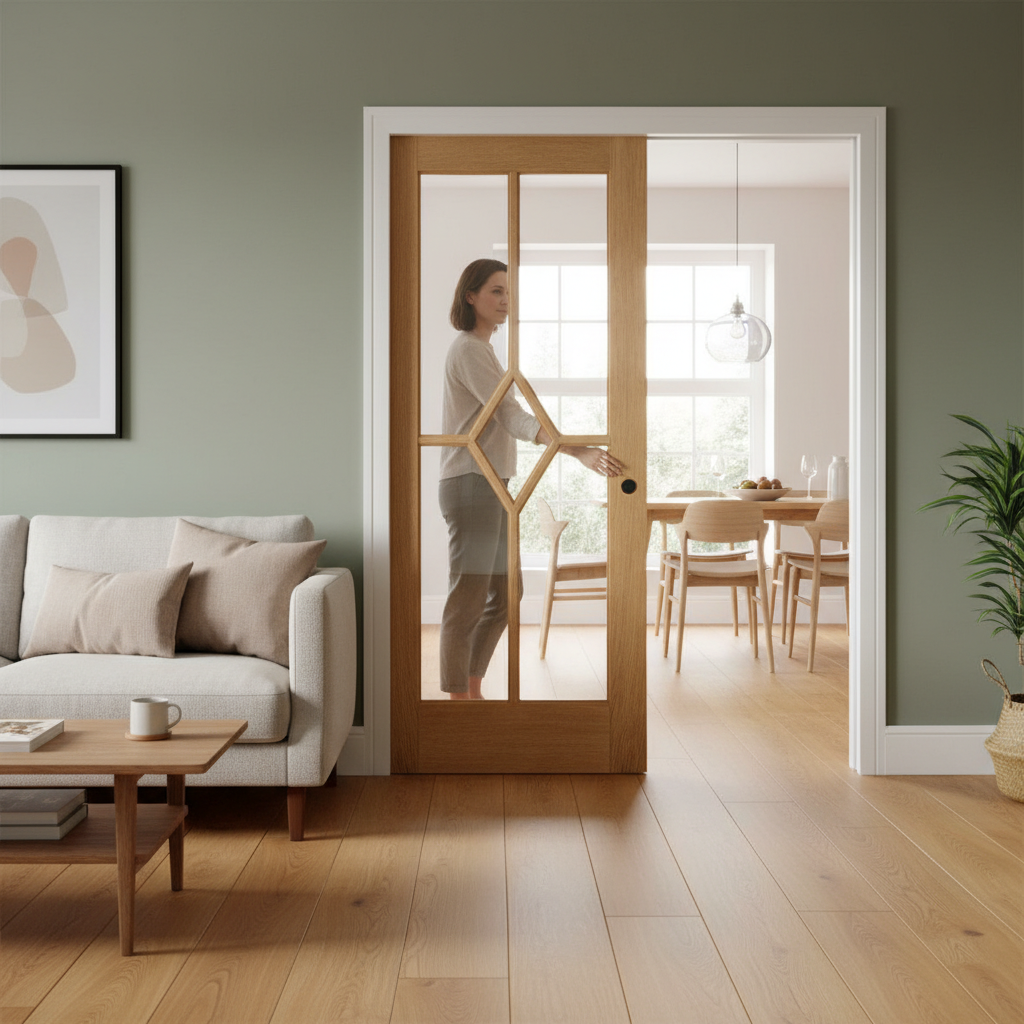

Create a warm and inviting atmosphere with this internal door, featuring a unique diamond design and five clear glazed panels. This fully finished door is perfect for adding light and charm to any traditional home while enjoying the benefits of a pocket door system, maximizing space in any room.

This door system allows you to slide the door straight into the discreet pocket which is hidden within the cavity. The pocket frame is constructed from galvanized steel and is supplied complete with the track and fixings. The cassette system comes with a comprehensive timber lining kit (jambs) to finish the installation perfectly.

The door jambs are available in two size options, 100mm or 125mm. If you are using 3" studwork, you would require 100mm jambs to achieve a finished wall thickness of 100mm when finished with 12.5mm plasterboard. For 4" studwork, you would require 125mm jambs, resulting in an overall wall thickness of 125mm when using 125mm plasterboard.

There is no bottom track or threshold strip; as with all pocket door systems, the single pocket door frame is top hung from a track. Inside the track are runners that are attached to the top of the door via a bracket, ensuring that there is no threshold strip or track in the floor, allowing your flooring to continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls, and bathroom locks can all be purchased separately.

Features

• 35mm Thick door supplied fully finished
• Strong galvanized steel frame with a quick-click assembly system, comprising a full pocket and track
• Runners tested to 100,000 cycles (approximately 25 years of average use)
• Adjustable door protrusion from the pocket
• The jamb kit is made from finger-jointed fir, unfinished and ready to paint or stain
• Door guide slots into a channel on the underside of the door, ensuring smooth operation even if the door warps
• 15-year guarantee on the complete steel pocket system and runners
• 20mm lippings with 8mm trimming allowance on each edge

Dimensions & Specifications

Our pocket door systems can be supplied in made-to-measure options. Please be aware that you may receive 2 deliveries; the frames are usually dispatched separately.

Technical Specifications

• Door Thickness: 35mm
• Frame Material: Galvanized Steel
• Jamb Material: Finger Jointed Fir
• Warranty: 15 years on the complete system

FAQs

• What is the benefit of a pocket door system? Pocket doors save space by sliding into the wall cavity, providing a clean look without the need for a swing radius.
• Can I customize the size of the door? Yes, made-to-measure options are available for the pocket door systems.
• Is installation complicated? The pocket door system comes with a comprehensive timber lining kit and track for easy installation.
