Product Overview

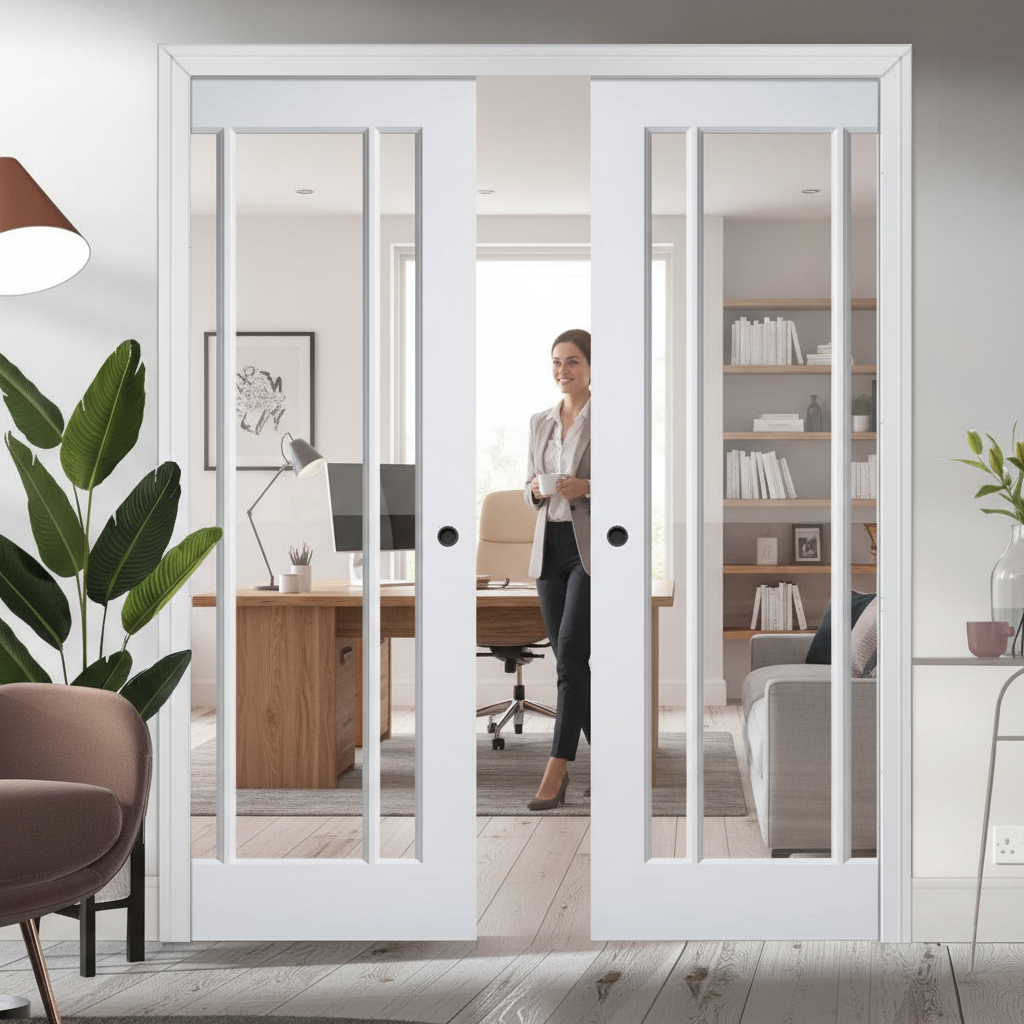

The Premium Clear Glazed Double Pocket Door Set features a white primed solid core with a large inset panel and decorative vertical bars, adding style and light to your space while saving room.
This double door system allows you to slide the doors straight into the discreet pockets which are hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system comes with a comprehensive timber lining kit (jambs) to finish the installation perfectly.
Door jambs are available in two size options, 100mm or 125mm. If you are using 3" studwork, then you would require 100mm jambs, giving a finished wall thickness of 100mm when finished with 12.5mm plasterboard. For 4" studwork, 125mm jambs are required for an overall wall thickness of 125mm when using 125mm plasterboard.
There is no bottom track or threshold strip; the pocket door frame is top hung from a track. Inside the track, there are runners attached to the top of the doors via a bracket, allowing your flooring to continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls, and bathroom locks can all be purchased separately.
Features
- 35mm/40mm thick doors
- Strong galvanised steel frame with a quick-click assembly
- Runners tested to 100,000 cycles (approximately 25 years of average use)
- Adjustable doors to determine how far they protrude from the pockets
- Jamb kit made from finger jointed fir, unfinished and ready to paint/stain
- Door guide slots into a channel on the underside of the doors for smooth operation
- Maintenance-free track and runners
- 15-year guarantee on the complete steel pocket system and runners
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Overall Pocket Frame Dimensions | Varies by door size |
| Imperial Door Sizes | 610 + 610 x 1981 = 2464mm x 2056mm |
| Imperial Door Sizes | 686 + 686 x 1981 = 2816mm x 2056mm |
| Imperial Door Sizes | 762 + 762 x 1981 = 3168mm x 2056mm |
| Imperial Door Sizes | 838 + 838 x 1981 = 3320mm x 2056mm |
| Imperial Door Sizes | 813 + 813 x 2032 = 3244mm x 2105mm |
| Metric Door Sizes | 626 + 626 x 2040 = 2494mm x 2115mm |
| Metric Door Sizes | 726 + 726 x 2040 = 2894mm x 2115mm |
Technical Specifications
- Door Thickness: 35mm/40mm
- Frame Material: Galvanised Steel
- Jamb Material: Finger Jointed Fir
- Runners: Tested for 100,000 cycles
- Guarantee: 15 years on pocket system and runners
FAQs
Q: What is the maximum door size for this pocket door set?A: The maximum door sizes vary from 610mm to 838mm for imperial sizes, and 626mm to 726mm for metric sizes.
Q: Can I paint or stain the jamb kit?A: Yes, the jamb kit is unfinished and ready for painting or staining.
Q: Is there a bottom track for the doors?A: No, the pocket door system is top hung, eliminating the need for a bottom track.
