Premium 3 Panel Double Pocket Door Set with Galvanised Steel Frame and Adjustable Jambs for Space-Saving Solutions
Premium 3 Panel Double Pocket Door Set with Galvanised Steel Frame and Adjustable Jambs for Space-Saving Solutions
Product Overview

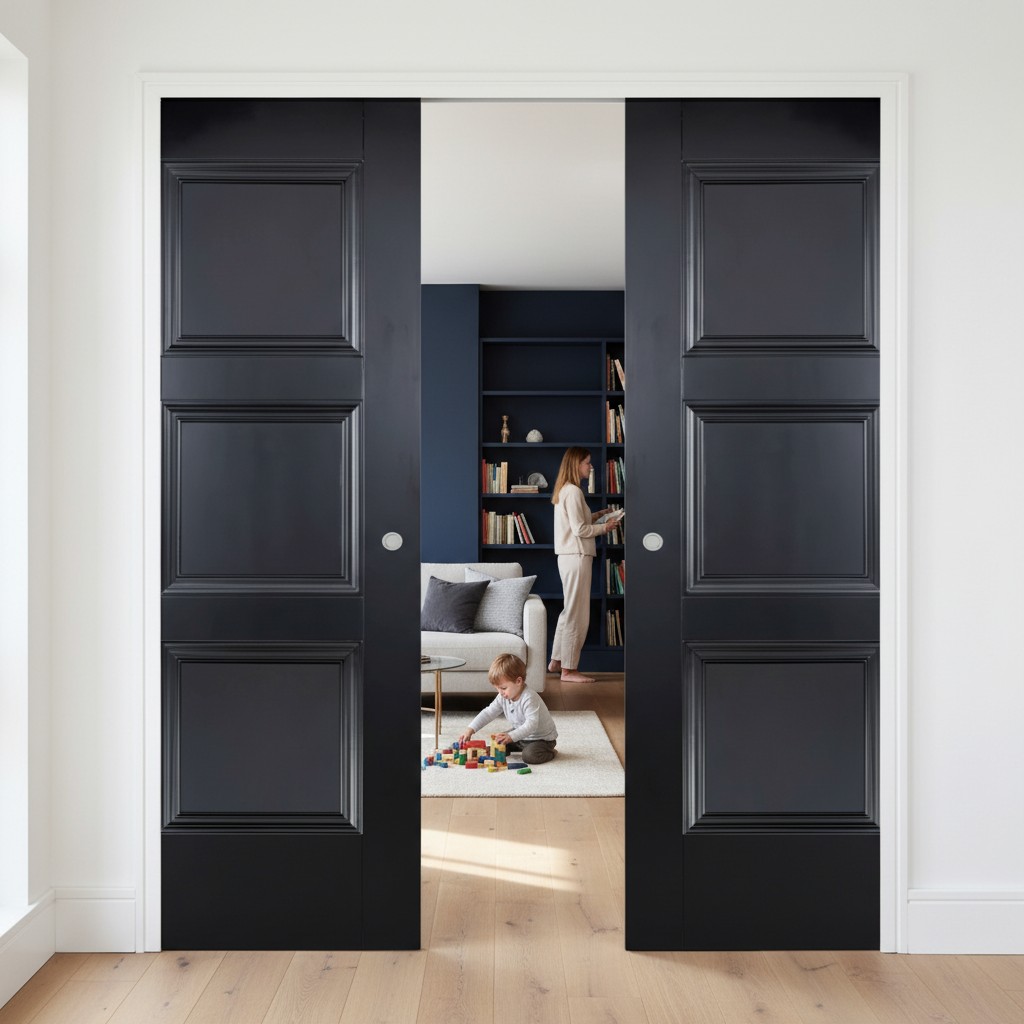

The Premium 3 Panel Double Pocket Door Set combines classic elegance with modern functionality. Its deep black finish and refined three-panel design with moulded detailing bring a striking, sophisticated look to any space. Perfect for both contemporary and traditional interiors, this door set maximizes space while adding timeless style to homes or commercial settings.
This double door system allows you to slide the doors straight into the discreet pockets which are hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system comes with a comprehensive timber lining kit (jambs) to finish the installation perfectly.
The door jambs are available in two size options, 100mm or 125mm. If you are using 3" studwork, then you would require 100mm jambs to achieve a finished wall thickness of 100mm when finished with 12.5mm plasterboard. If using 4" studwork, then the 125mm jambs are required, resulting in an overall wall thickness of 125mm when using 125mm plasterboard.
There is no bottom track or threshold strip, as the pocket door frame is top hung from a track. Inside the track are runners attached to the top of the doors via a bracket, allowing for a seamless flooring transition without disturbance. Accessories such as soft door closers, flush door pulls, and bathroom locks can be purchased separately.
Features
- 35mm thick doors
- Strong galvanised steel frame; a quick-click frame that assembles into a complete unit comprising a full pocket and track
- Runners tested to 100,000 cycles (approximately 25 years of average use)
- Adjustable to determine how far the doors protrude from the pockets
- Jamb kit made from finger-jointed fir, unfinished and ready to paint or stain
- Door guide slots into a channel on the underside of the doors, ensuring smooth operation even if doors warp
- Maintenance-free track and runners
- 15-year guarantee on the complete steel pocket system and runners
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Overall Pocket Frame Dimensions | Varies by door size |
| 610 + 610 x 1981 Door Panels | 2464mm x 2056mm |
| 686 + 686 x 1981 Door Panels | 2816mm x 2056mm |
| 762 + 762 x 1981 Door Panels | 3168mm x 2056mm |
| 838 + 838 x 1981 Door Panels | 3320mm x 2056mm |
Technical Specifications
- Material: Galvanised Steel Frame
- Thickness: 35mm
- Jamb Material: Finger Jointed Fir
- Guarantee: 15 years on the complete system
Frequently Asked Questions
1. Can the door size be customized?
Yes, our pocket door systems can be supplied in made-to-measure options.
2. Is installation complicated?
No, the pocket door system comes with a comprehensive timber lining kit, making installation straightforward.
3. What is the lifespan of the runners?
The runners are tested to last for approximately 100,000 cycles, equating to around 25 years of average use.
